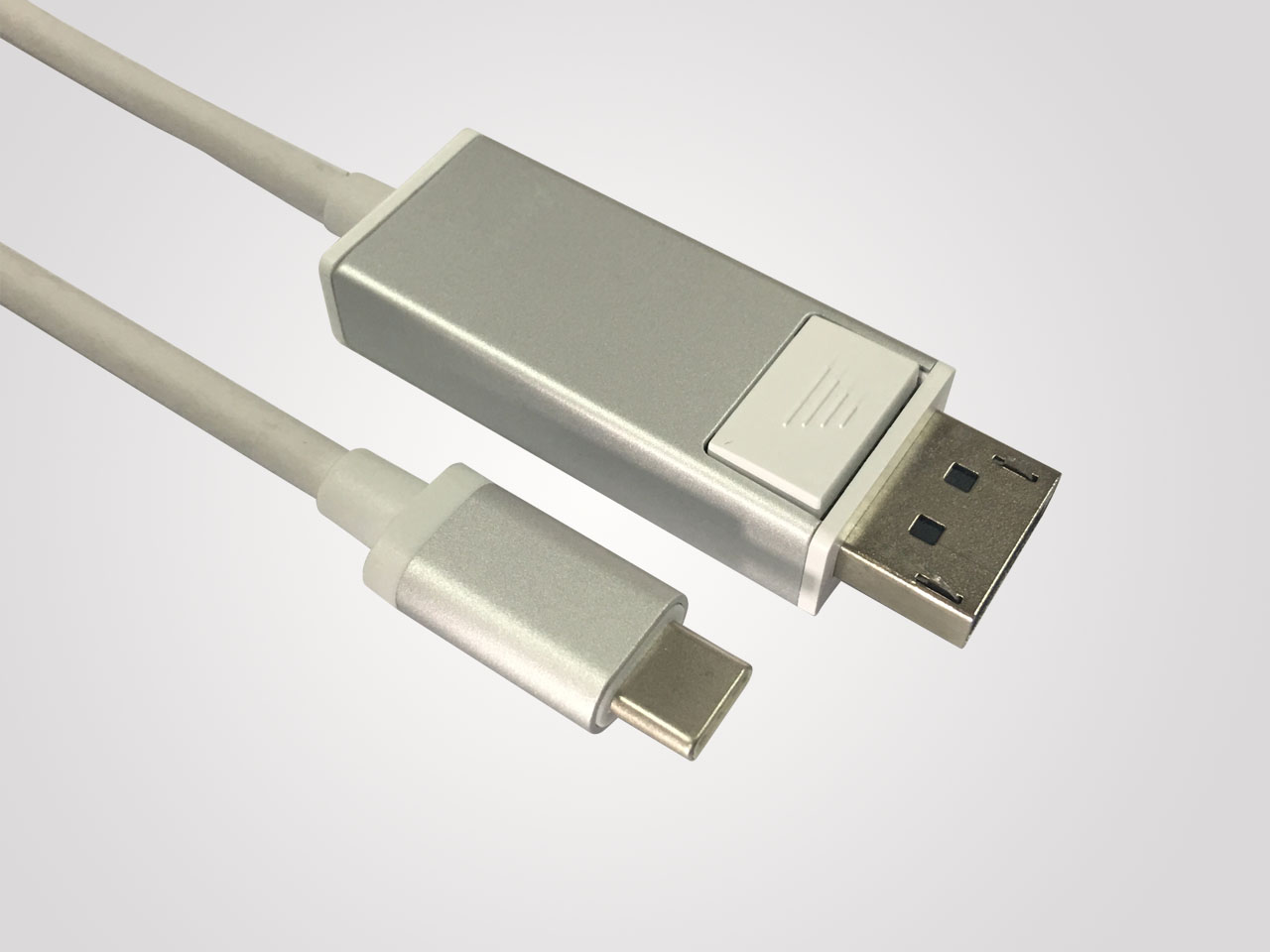

USB Type-C to DisplayPort Cable Assy

Part Number: RUB31-XXXX
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: USB Type-C To DisplayPort Dongle
Series: Type-C
Plating(Type-C): Au 30u" min
Plating(DisplayPort): Au 15u" min over Ni 50u" min
Color: Black
Environmental Compliance: RoHS
Flammability: thermoplastic UL94 V-0, raw cable VW-1

USB Type-C to DisplayPort Cable Assy

Part Number: RUB31-XXXX
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: USB Type-C To DisplayPort Dongle
Series: Type-C
Plating(Type-C): Au 30u" min
Plating(DisplayPort): Au 15u" min over Ni 50u" min
Color: Black
Environmental Compliance: RoHS
Flammability: thermoplastic UL94 V-0, raw cable VW-1
Drawings
Product Drawing
3D Tooled Connectors (Any 3D equest, please contact us further)

Applications

1.    Notebook

2.    Monitor

3.    TV

4.    Projector

5.    Consumer electronic



Features and Benefits

1.    Transmission rate: 5.4Gbps

2.    Transfer Type-C signal to DisplayPort signal

3.    Compliance with Type-C 1.1 Specification

4.    Compliance with DP 1.3 Specification



Mechanical Performance

    Mating Force and Un-mating Force

   1. Type-C plug connector

       Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute

       Mating Force: 5N-20N

       Un-mating Force: 8N-20N



   2. DisplayPort plug connector

       Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute

       Mating Force: 44.1N maximum

       Un-mating Force: 9.8N-39.2N



Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
