Harsh EnvironmentalSolution

LED Lighting/Solar energy/subsea equipment

LED lighting has been widely used in various industries including communication, exhibition, indoor or outdoor lighting. But it needs connector and cable to meet IP6X water proof performance to endure hash environment, sometimes endure high temperature environment.

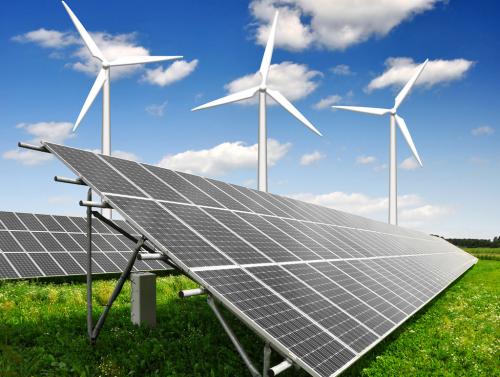

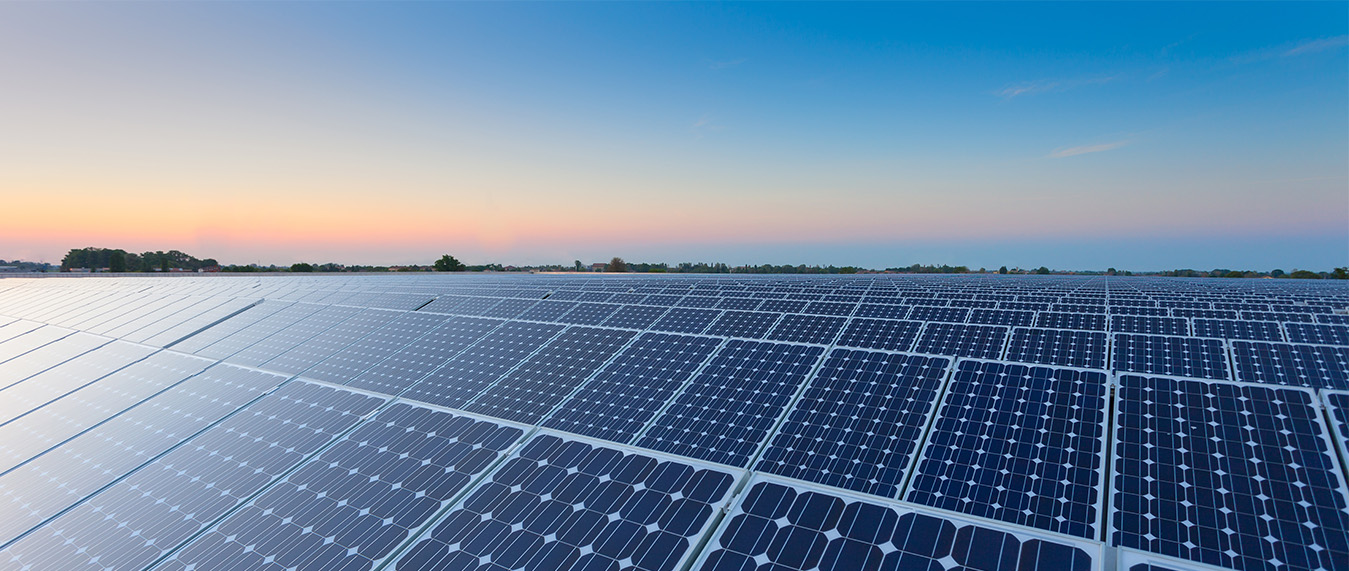

Solar energy is the conversion of energy from sunlight into electricity, either directly using photovoltaics (PV), indirectly using concentrated solar power, or a combination. Concentrated solar power systems use lenses or mirrors and tracking systems to focus a large area of sunlight into a small beam. Photovoltaic cells convert light into an electric current using the photovoltaic effect.

Video need high speed cable to transfer . Amphenol can provide excellent performance and high quality products for the application.

image Intro

Applications

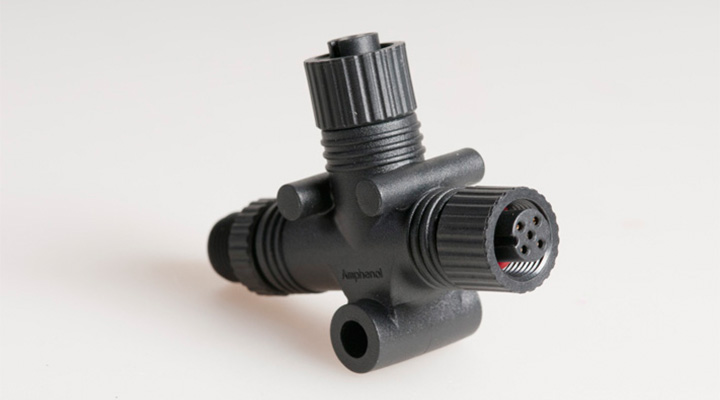

M12 NMEA 5Pos T Type Adapter

Electrical Performance:

1. Current Rating : 3A.

2. Voltage Rating: 250V

3. Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown

4. Insulation Resistance: 100 MOhm minimum.

5.Contact resistance: Max 1mOhm.

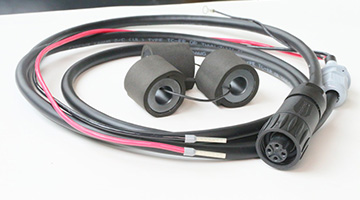

M15 2Pos Male to 6X T Type Female

Electrical Performance:

1. Current Rating : 10A.

2. Voltage Rating: 300V.

3. Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown

4. Insulation Resistance: 1000 MOhm minimum.

5. Contact resistance: Max 5mOhm.

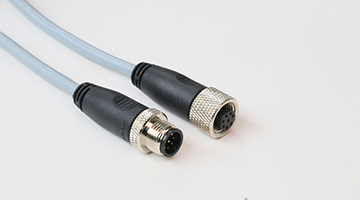

M11 Male to Open

Electrical Performance:

1. Current Rating : 3A.

2. Voltage Rating: 250V.

3. Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown.

4. Insulation Resistance: 5 MOhm minimum.

5.Contact resistance: Max 5mOhm
