5G & Networking

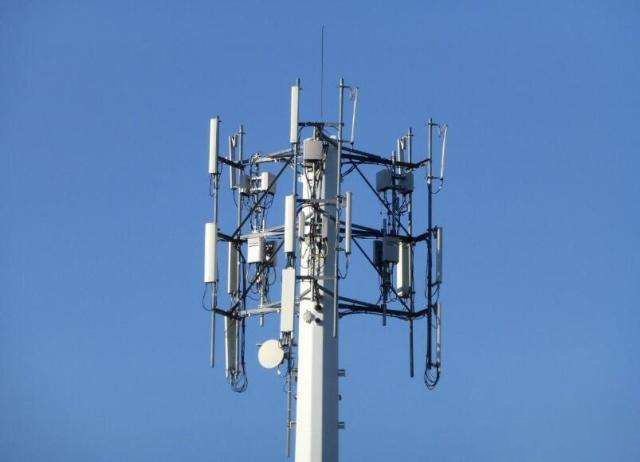

The key technology of 5G is massive wireless technology will be deployed, so the data will be increased dramatically, current trend of 5G base station is combined RRU into AAU, called AAS (Advanced Antenna System).

With more data processing module be embedded into AAS box, the connection between mother board and other modules will be more complicated, and data processing will be increasing dramatically, so high speed cable is one the choice for signal transmission.

image Intro

Applications

Shielding MCIO 8i

Features and Benefits:

1.0.6mm pitch, 1.57mm thick Mini Cool Edge IO PCB

2.Shielding 8X(74pin) connector is available, other channels are customized

3.Support 25 Gbps signal rate(56G PAM4), SAS4.0 24Gbps and PCI-e 5.0 32GT/s per lane

Shielding Swift 4i/8i

Features and Benefits:

1.Standard channels 4X(38P)/8X(74P), other channels can be customized

2. Signal-Signal(S-S) pitch 0.6mm, Signal-Ground(S-G) pitch 0.75mm

3. Support 30AWG~34AWG cable and 85ohm application

Shielding SlimSAS 8i

Features and Benefits:

1. 0.6mm pitch, 1.0mm thick SlimSAS® PCB

2. Shielding 8X(74pin) connector is available, other channels are customized

3. SAS4.0 24Gbps and PCI-e 4.0 and 5.0 16GT/s and 32GT/s per lane

4. Impedance 85 ohm 30AWG available
