IT Data Com ServerSolution

Server/Workstation/Storage/PC

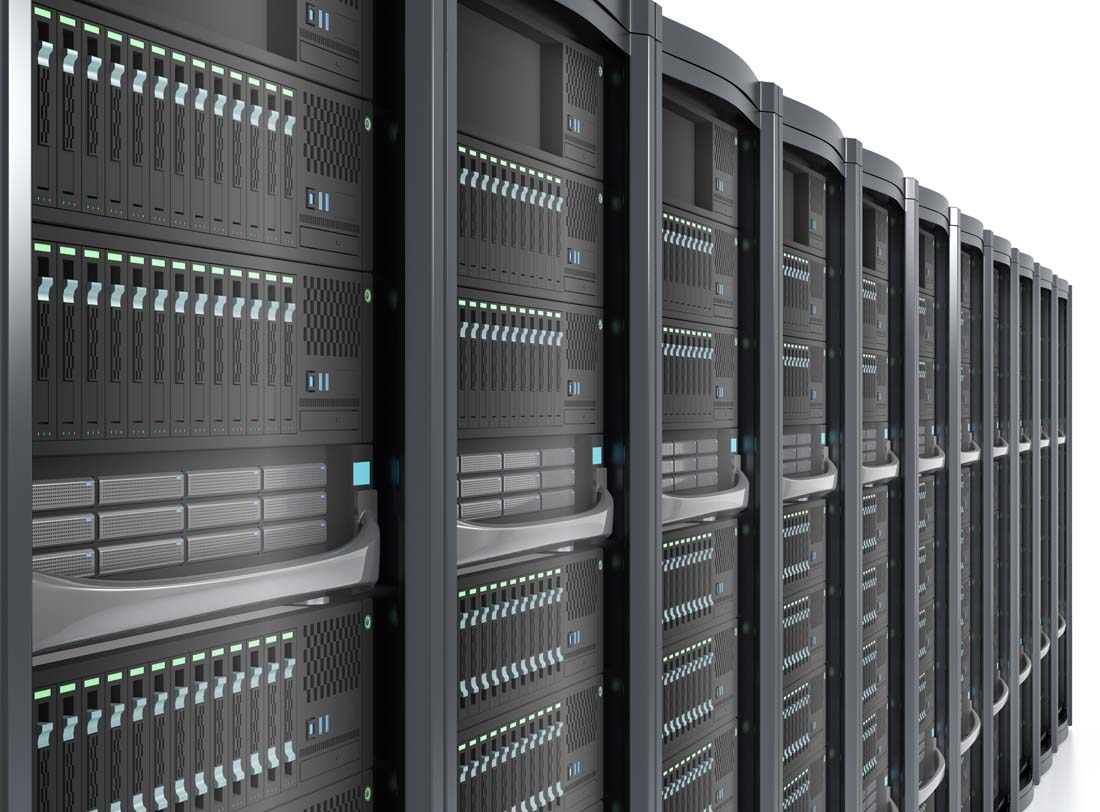

With more and more demand of big data, cloud computing and IOT, server, workstation and storage are becoming smaller, quicker, higher width, high current and more reliable. Amphenol can provide professional high speed and power connectors and cables to support the new application trends.

PC include desktop, notebook and tablet. PC becomes smaller, quicker and more functional. This need connector and cables to be thinner, smaller and higher speed to support entertainment function. Amphenol develop various USB, Type-C, HDMI, Displayport cables, adapter and hub, LVDS, FFC and FPC to meet market requirements.

image Intro

Applications

MCIO 8X Straight to Straight

Features and Benefits:

1.Pitch 0.6mm connector design.

2.1.57mm PCB card thickness compatible with PCIe riser card.

3.8X and 12X(74pin) connectors are optional

4.Supports signaling rates up to PCIe5 32GT/s, 56 GT/s NRZ and 112 GT/s PAM-4 per lane, max 12 lanes

5.30-34AWG cable

Ultraport LP SlimSAS 8X to 8X

Features and Benefits:

1.Smaller size than mainstream connectors in market.

2. Low loss, optimized NEXT (-45dB at 12.89GHz) and FEXT (-40dB at 12.89GHz).

3. Support 25Gbps higher signal speed than SAS4.0 24Gbps and PCIe 4.0 16Gbps

SlimSAS 4i Straight to Straight

Features and Benefits:

1. Smaller size connector and cable saves device space

2. Provide four channels signal transmission as per industry standard

3. Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel

4. Meet SAS4.0 and Ultraport SlimSAS SFF-8654 specification
