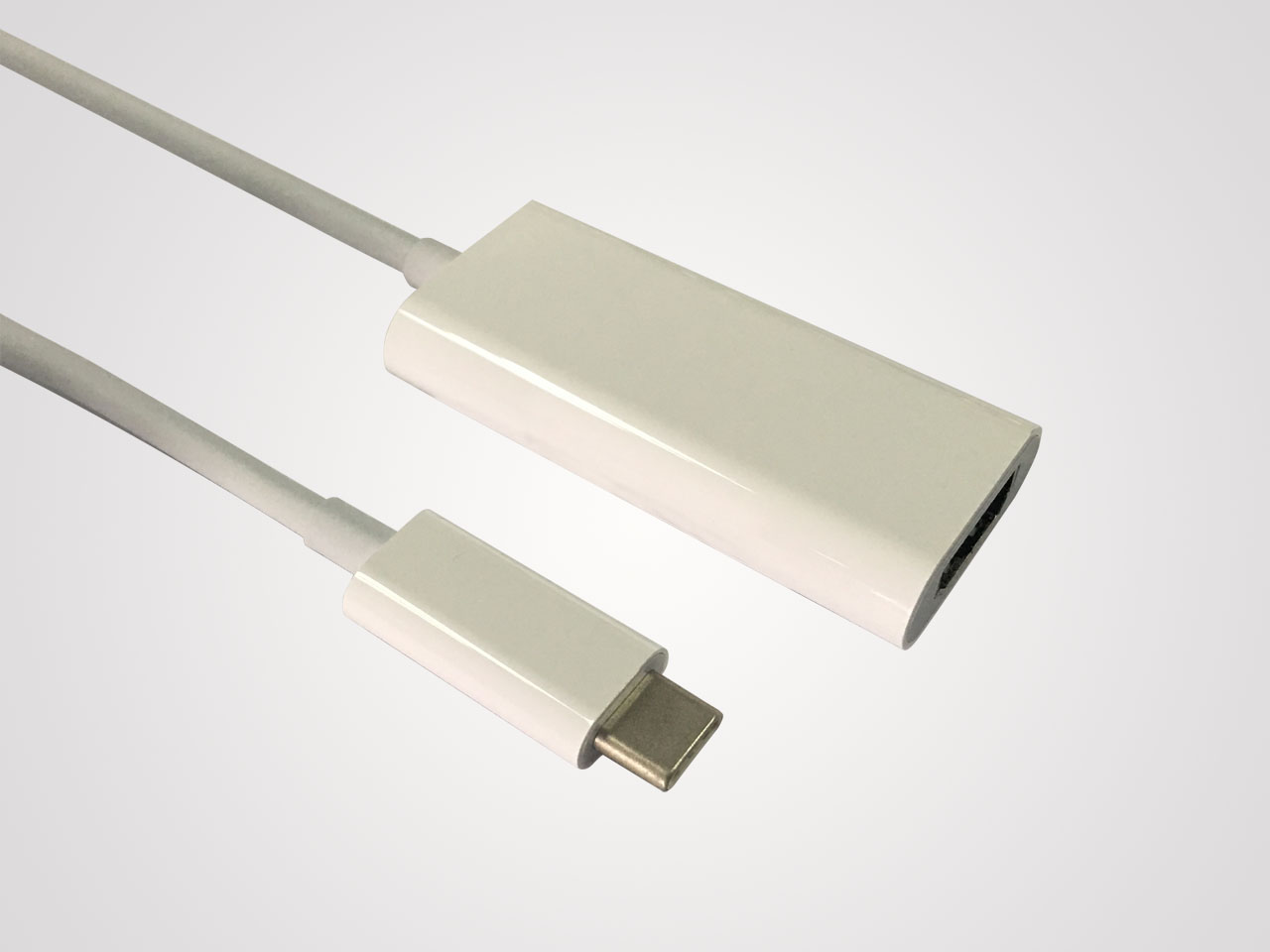

USB Type-C to HDMI Female Dongle
Part Number: RUB31-XXXX
Product Description: USB Type-C To HDMI female Dongle
Series: Type-C
Plating(Type-C): Au 30u'' min
Plating(HDMI): Au 15u" min over Ni 50u" min
Color: Black
Environmental Compliance: RoHS
Flammability: thermoplastic UL94 V-0, raw cable VW-1
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)

USB Type-C to HDMI Female Dongle

Part Number: RUB31-XXXX
Product Description: USB Type-C To HDMI female Dongle
Series: Type-C
Plating(Type-C): Au 30u'' min
Plating(HDMI): Au 15u" min over Ni 50u" min
Color: Black
Environmental Compliance: RoHS
Flammability: thermoplastic UL94 V-0, raw cable VW-1
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)

Applications

    1. Notebook

2. Monitor

3. Consumer electronic



Features and Benefits

    1. Transmission rate: 5.4Gbps

    2. Transfer Type-C signal to HDMI signal

3. Compliance with Type-C 1.1 Specification

4. Compliance with HDMI 1.4 Specification



Mechanical Performance

   Mating Force and Un-mating Force

   1. Type-C plug connector

       Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute

       Mating Force: 5N-20N

       Un-mating Force: 8N-20N



   2. HDMI connector

       Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute

       Mating Force: 44.1N maximum

       Un-mating Force: 9.8N-39.2N



Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
