Home>SlimSAS® 8i 74Pos

SlimSAS® 8i Right Angle to Reverse Right Angle

Part Number: RSL74-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

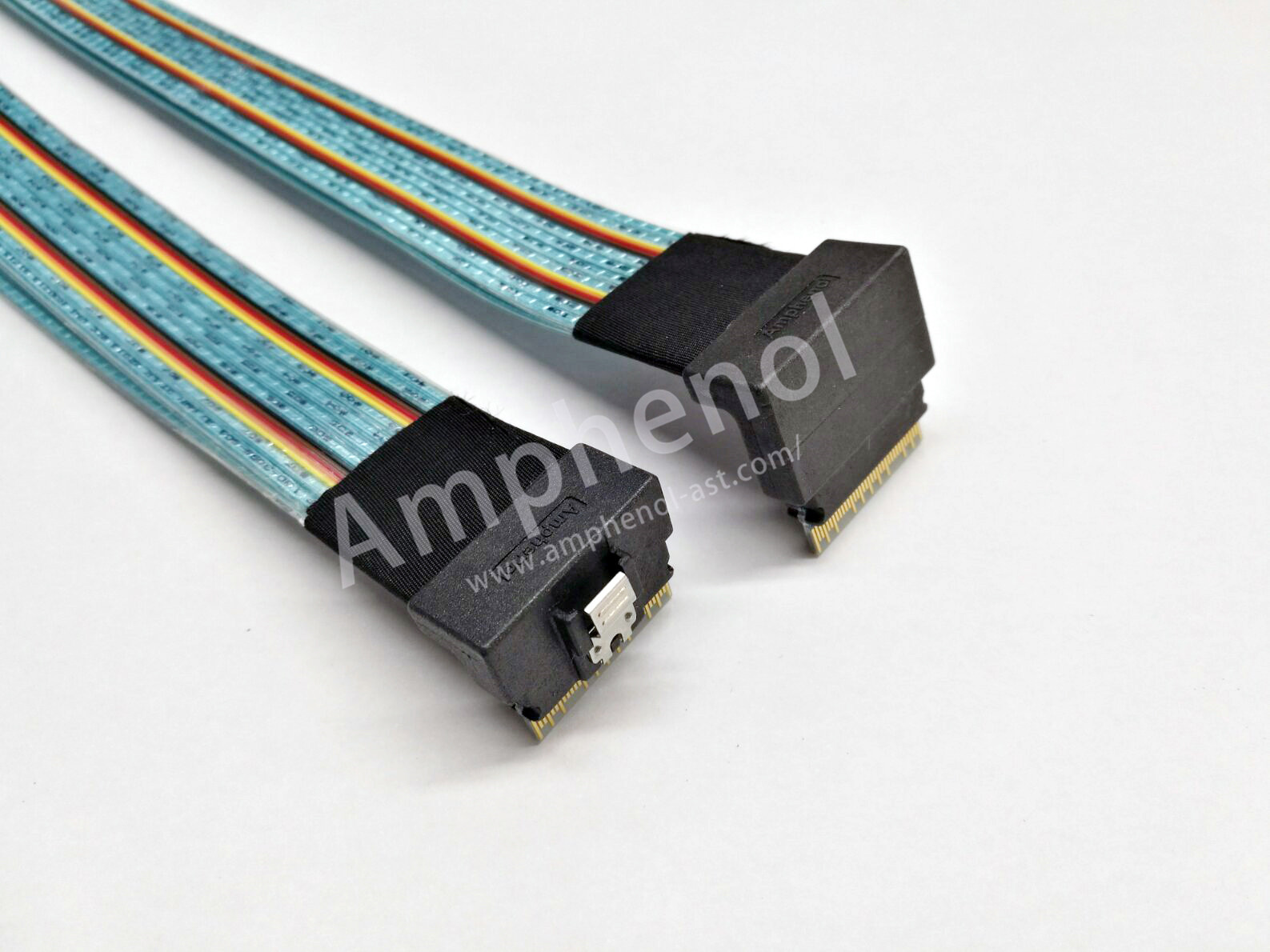

Product Description: SlimSAS 8i Right Angle to Reverse Right Angle Cable Assembly
Series: SlimSAS
Cable Length: 1.0 meters
Signal Wire Size: 30-34AWG (85ohm), 32-34AWG(100ohm),
Lock to mating part: With latch
Plating: Au 30u" min
Color: Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

SlimSAS® 8i Right Angle to Reverse Right Angle

Part Number: RSL74-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: SlimSAS 8i Right Angle to Reverse Right Angle Cable Assembly
Series: SlimSAS
Cable Length: 1.0 meters
Signal Wire Size: 30-34AWG (85ohm), 32-34AWG(100ohm),
Lock to mating part: With latch
Plating: Au 30u" min
Color: Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
Drawings
product drawing
3D Tooled Connectors (Available)

Applications

   1. Servers

2. Data Storage

3. Workstation



Features and Benefits

1. Smaller size connector and cable saves device space

2. Provide 8 channels signal transmission as per industry standard

3. Data speed: UPI1.0 11.2GT/s, SAS4.0 24Gbps,OpenCAPI 25Gbps and PCIe4.0 16GT/s per channel

4. Meet SAS4.0, SlimSAS SFF-8654



Mechanical Performance

1. Mating Force: 55.5N maximum

2. Unmating Force: 49N maximum

3.  Rated durability cycles: 250 cycles minimum

Electrical Performance

1. Voltage: 30VDC per contact

SlimSAS 8i plug: 80mohm max. initial, 20mohm maximum after stress test.

2. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

3. Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1. Mated Connector Impedance: 100+/-10% ohm

2. Common Mode Impedance: meet SAS4.0 specification

3. Insertion loss: meet SAS4.0 specification,

4. Maximum Crosstalk: meet SAS4.0 specification



Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
