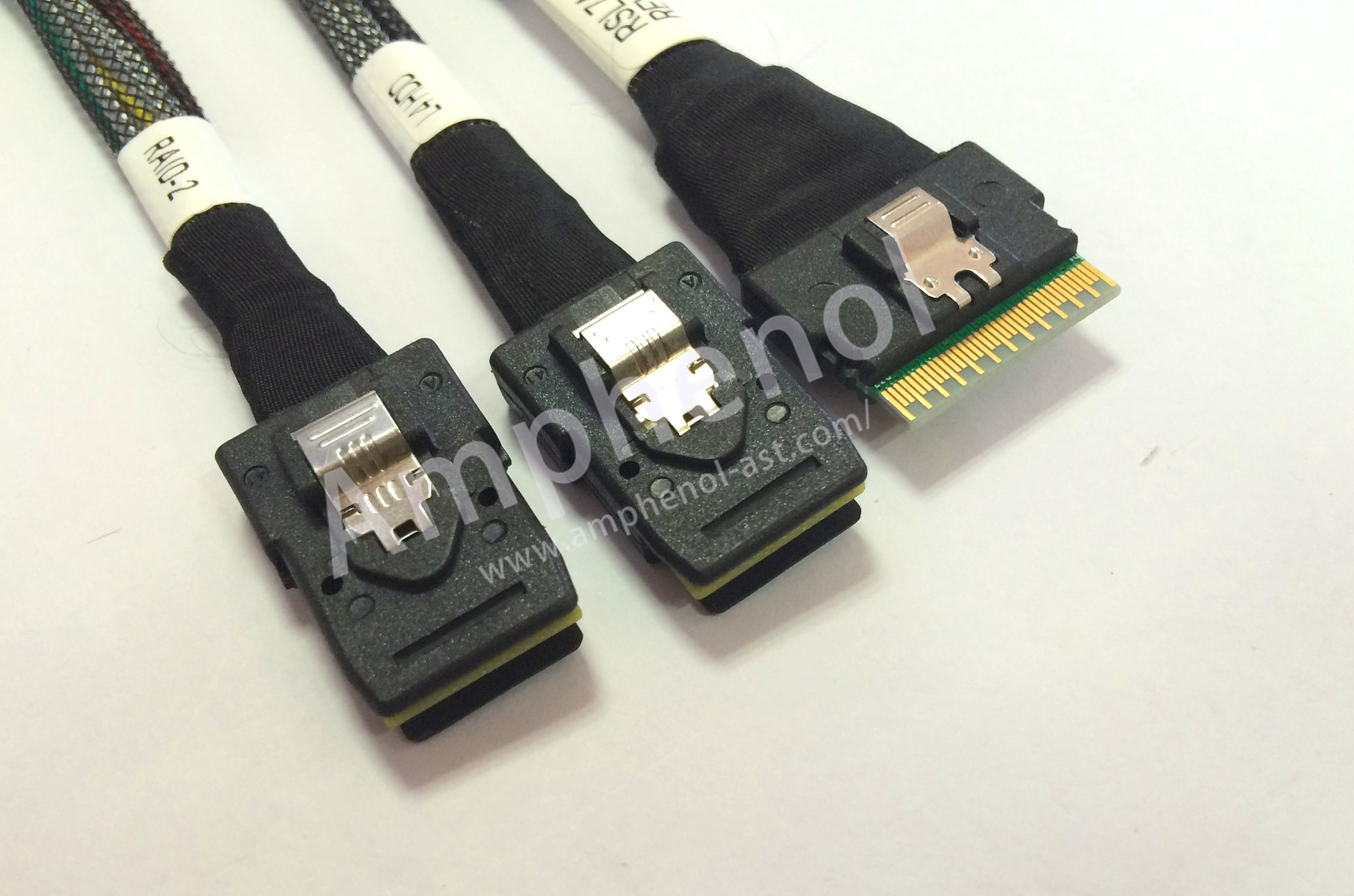

SlimSAS® 8i Straight to 2X Mini SAS 4i

Part Number: RSL74-XXXX
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: Ultraport SlimSAS 8i 74Pos to 2X Mini SAS 4i 36Pos Cable Assembly
Series: Ultraport SlimSAS
Cable Length: 1.0 meters
Signal Wire Size: 31AWG,
Lock to mating part: With latch
Plating: Au 30u" min
Color: Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

SlimSAS® 8i Straight to 2X Mini SAS 4i

Part Number: RSL74-XXXX
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: Ultraport SlimSAS 8i 74Pos to 2X Mini SAS 4i 36Pos Cable Assembly
Series: Ultraport SlimSAS
Cable Length: 1.0 meters
Signal Wire Size: 31AWG,
Lock to mating part: With latch
Plating: Au 30u" min
Color: Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Applications

   1. Servers

2. Data Storage

3. Workstation



Features and Benefits

1. Smaller size connector and cable saves device space

2. Provide four channels signal transmission as per industry standard

2. Data speed: 12Gbps for SAS per channel

2. Meet SAS3.0, Ultraport SlimSAS  SFF-8654, SFF-8086 and SFF-8087 specification



Mechanical Performance

Ultraport SlimSAS 8i plug

<!--[if !supportLists]-->1.     <!--[endif]-->Mating Force: 150N maximum

<!--[if !supportLists]-->2.     <!--[endif]-->Unmating Force: 50N maximum

<!--[if !supportLists]-->3.     <!--[endif]-->Rated durability cycles: 250 cycles minimum

 Mini SAS 4i plug

<!--[if !supportLists]-->1.     <!--[endif]-->Mating Force: 55.5N maximum

<!--[if !supportLists]-->2.     <!--[endif]-->Unmating Force: 49N maximum

<!--[if !supportLists]-->3.     <!--[endif]-->Rated durability cycles: 250 cycles minimum



Electrical Performance

1. Voltage: 30VDC per contact

Ultraport SlimSAS plug: 80mohm max. initial, 20mohm maximum after stress test.

Mini SAS plug: 80mohm max. initial, 20mohm maximum after stress test.

2. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

3. Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1. Mated Connector Impedance: 100+/-10% ohm

2. Common Mode Impedance: meet SAS3.0 specification

3. Insertion loss: meet SAS3.0 specification,

4. Maximum Crosstalk: meet SAS3.0 specification



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
