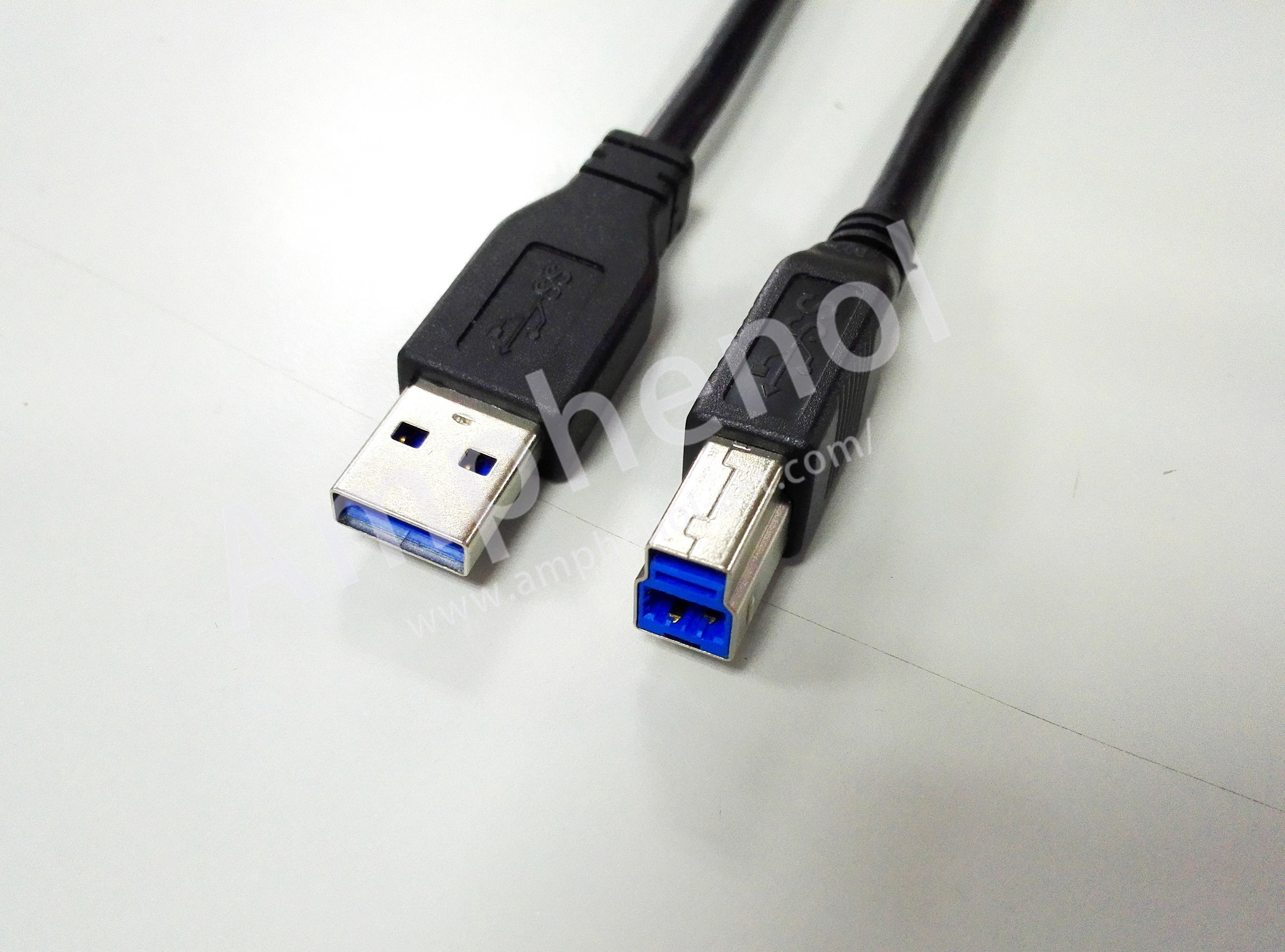

Applications

1. Desktop

2. Printer

3 .Mobile device

4. Consumer electronic

Features and Benefits

1.Transmission rate: 10 Gbps.

2..Current rating: Maximum up to 5A application .

3 Voltage rating: Maximum up to 20V application .

4. Meet USB3.1 Specification and PD2.0 Specification .

Mechanical Performance

Mating Force and Un-mating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 35 N maximum.

Un-mating Force: 10 N minimum, 25 N maximum .

Electrical Performance

1.Contact Resistance

20mohm max for VBUS and GND, 50mohm for all other contacts initial, 10mohm maximum change after stress test.

2.Dielectric Withstanding Voltage

100 VAC for 1 minute no breakdown.

3.Insulation Resistance

100 Mega ohms minimum.

Signal Integrity

1. Mated Connector Impedance: 90ohm±10

2. Insertion loss: -6dB maximum up to 5.0 GHz,

3. Near-end Crosstalk between SS pairs: -34 dB up to 5.0 GHz

Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
