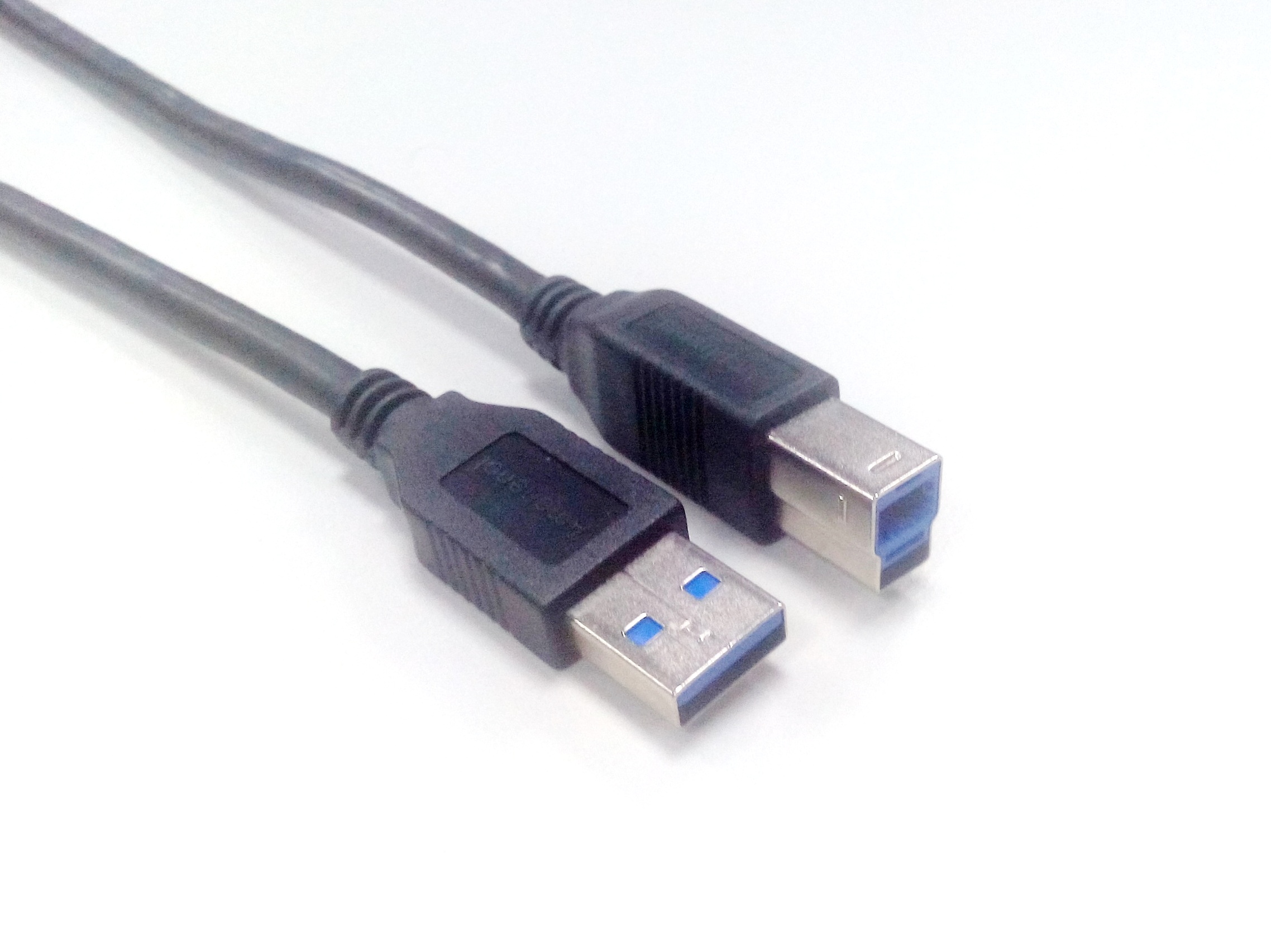

USB3.1 Standard A plug to Standard B plug

Part Number: RUB31-0001
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: USB3.1 standard A plug to standard B plug cable assembly
Series: USB3.1
Plating: Au 30u" min
Color: black overmold and cable jacket
Environmental Compliance: RoHS
Flammability: thermoplastic resin UL94V-0, cable VW-1

USB3.1 Standard A plug to Standard B plug

Part Number: RUB31-0001
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: USB3.1 standard A plug to standard B plug cable assembly
Series: USB3.1
Plating: Au 30u" min
Color: black overmold and cable jacket
Environmental Compliance: RoHS
Flammability: thermoplastic resin UL94V-0, cable VW-1
Drawings
USB3.1 Serials Drawing
Mechanical Performance & Signal Integrity Report
Test Report
3D Tooled Connectors (Available)

Applications

   1. Desktop

2. Printer

3 .Hard disk

3. Consumer electronic



Features and Benefits

1.Transmission rate: 10 Gbps.

2. Meet USB3.1 specification.



Mechanical Performance

Mating Force and Un-mating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 35 N maximum.

Un-mating Force: 10 N minimum, 25 N maximum .



Electrical Performance

1.Contact Resistance 30mohm max for VBUS and GND,50 mohm for all other contacts initial,

  10mohm maximum change after stress test.

2.Dielectric Withstanding Voltage 100 VAC for 1 minute no breakdown.

3.Insulation Resistance 100 Mega ohms minimum.



Signal Integrity

1. Mated Connector Impedance: 90ohm±10

2. Insertion loss: -6dB maximum up to 5.0 GHz,

3. Near-end Crosstalk between SS pairs: -34 dB up to 5.0 GHz



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
