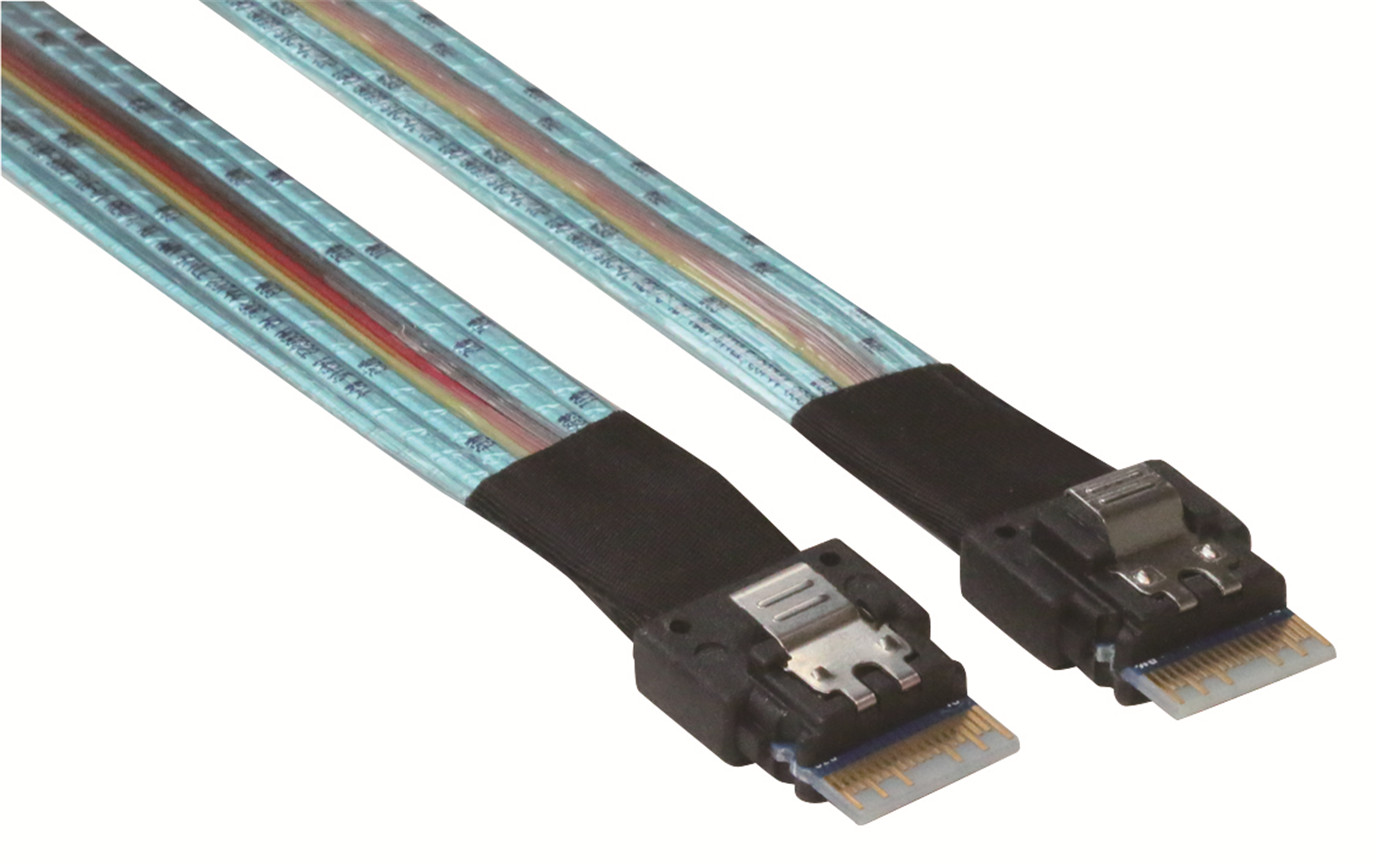

SlimSAS® 4i Straight to Straight

Part Number: RSL38-XXXX
Product Description: Ultraport SlimSAS 4i 38Pos to 4i 38Pos Cable Assembly
Series: Ultraport SlimSAS
Cable Length: 1.0 meters
Signal Wire Size: 30-34AWG (85ohm), 32-34AWG(100ohm)
Lock to mating part: With latch
Plating: Au 30u" min
Color: Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

SlimSAS® 4i Straight to Straight

Part Number: RSL38-XXXX
Product Description: Ultraport SlimSAS 4i 38Pos to 4i 38Pos Cable Assembly
Series: Ultraport SlimSAS
Cable Length: 1.0 meters
Signal Wire Size: 30-34AWG (85ohm), 32-34AWG(100ohm)
Lock to mating part: With latch
Plating: Au 30u" min
Color: Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
3D Tooled Connectors (Available)

Applications

    1. Servers

2. Data Storage

3. Desktops

4. Workstation



Features and Benefits

1. Smaller size connector and cable saves device space

2. Provide four channels signal transmission as per industry standard

2. Data speed: support UPI 11.2Gbps, SAS4.0 24Gbps,  25Gbps and PCIe 4.0 16Gbps per lane

2. Meet SAS4.0 and Ultraport SlimSAS SFF-8654 specification



Mechanical Performance

1. Retention Force: 50N minimum

2. Rated durability cycles: 50 cycles minimum



Electrical Performance

1. Voltage: 30VDC per contact

30mohm max. initial, 15mohm maximum after stress test.

2.Dielectric Withstanding Voltage: 250 VDC minimum for 100 ms

3. Insulation Resistance: 100 MΩ minimum between adjacent terminal



Signal Integrity

1. Mated Connector Impedance: 85 ±10% ohm and 100+/-10% ohm

2. Common Mode Impedance: meet PCIe Gen3 and SAS4.0 specification

3. Insertion loss: meet PCIe Gen3 and SAS4.0 specification,

4. Maximum Crosstalk: meet PCIe Gen3 and SAS4.0 specification



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol's Site Operating Procedure #SOP-708 REV 2
