Applications
1. Servers
2. Data Storage
3. Workstation
Features and Benefits
1. Smaller size connector and cable saves device space
2. Provide four channels signal transmission as per industry standard
2. Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
2. Meet SAS3.0, Ultraport SlimSAS SFF-8654, SFF-8643 specification
Mechanical Performance

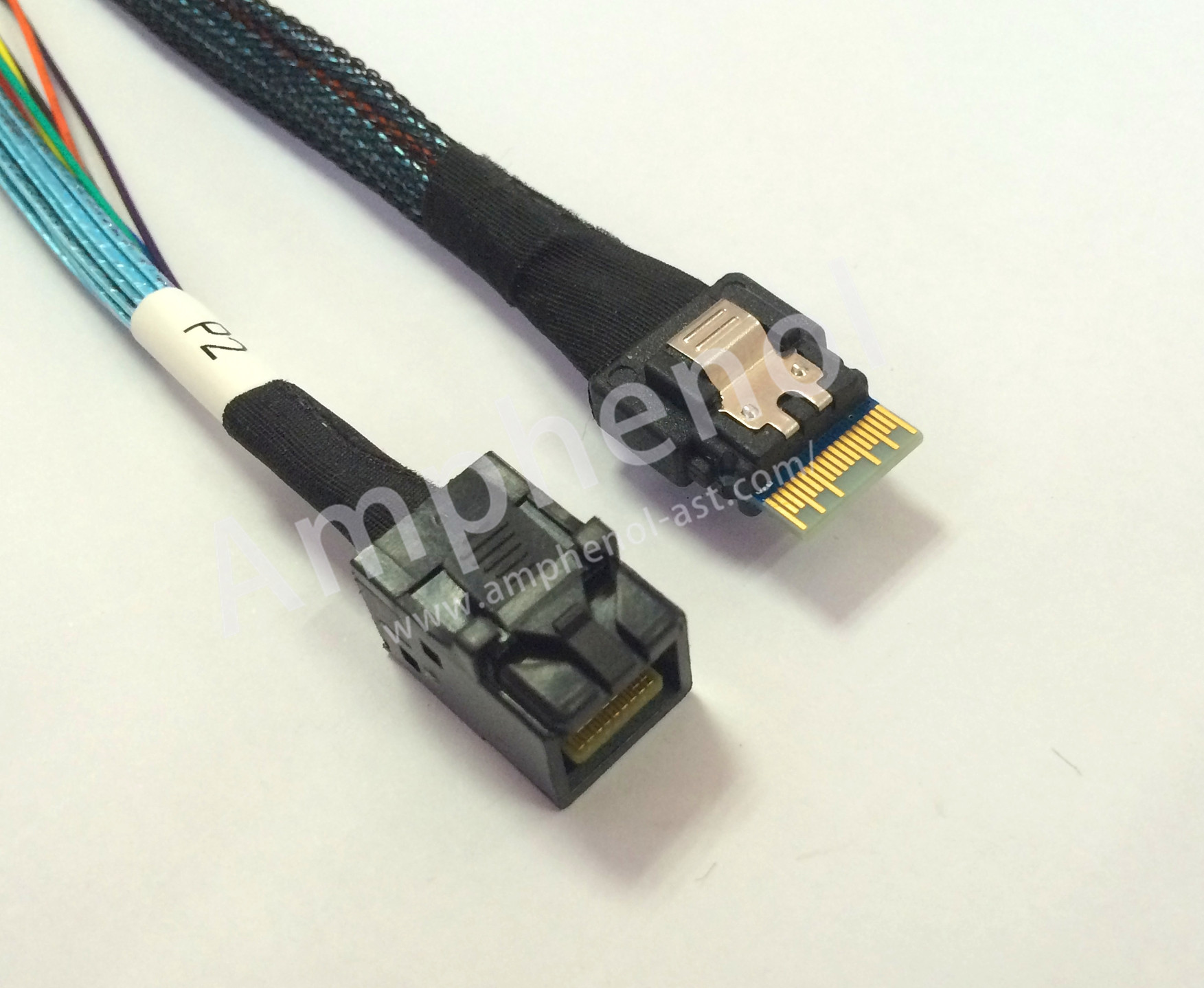

1. Ultraport SlimSAS 4i plug
Mating Force: 150N maximum
Unmating Force: 50N maximum
Rated durability cycles: 250 cycles minimum
2. HD Mini SAS 4i plug
Mating Force: 150N maximum
Unmating Force: 50N maximum
Rated durability cycles: 250 cycles minimum
Electrical Performance
1. Voltage: 30VDC per contact
Ultraport SlimSAS 4i plug: 80mohm max. initial, 20mohm maximum after stress test.
HD Mini SAS 4i plug: 30mohm max. initial, 20mohm maximum after stress test.
2.Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
3. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. Mated Connector Impedance: 85 ±10% ohm or 100+/-10% ohm
2. Common Mode Impedance: meet PCIe Gen3 and SAS4.0 specification
3. Insertion loss: meet PCIe Gen3 and SAS4.0 specification,
4. Maximum Crosstalk: meet PCIe Gen3 and SAS4.0 specification
Product Environmental Compliance
RoHS2.0: Compliant
ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
|
