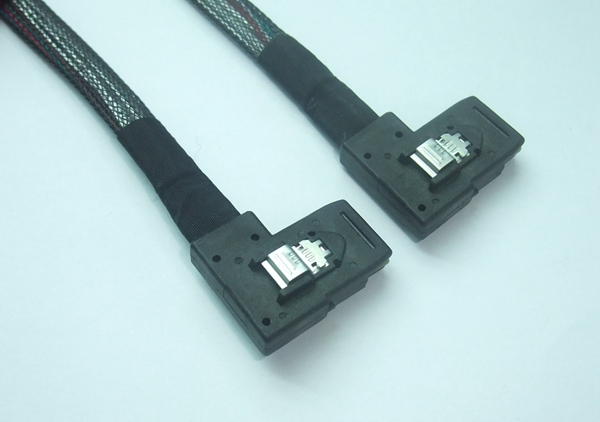

Mini SAS 36P SE to SE

Part Number: RMS36-2406
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: Mini SAS 36P SE TO Mini SAS 36P SE
Series: Mini SAS
Cable Length: 0.59 meters
Wire Size: 30AWG, TINNED COPPER,OD:0.9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au(30u' min) over Ni(100u' min)
Color: Cable blue, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame, PCB 94V-0,PBT 94V-0

Mini SAS 36P SE to SE

Part Number: RMS36-2406
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: Mini SAS 36P SE TO Mini SAS 36P SE
Series: Mini SAS
Cable Length: 0.59 meters
Wire Size: 30AWG, TINNED COPPER,OD:0.9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au(30u' min) over Ni(100u' min)
Color: Cable blue, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame, PCB 94V-0,PBT 94V-0
Drawings
Product Drawing
Mechanical Performance & Signal Integrity Report
Test Report
Product Environmental Compliance
RoHS Report
3D Tooled Connectors (Available)

Applications

    Data/Communications

1.RAID (Redundant Array of Independent Disks )

2. Workstations

3.Rack-mount server

4.Servers

5.Storage rack



Features and Benefits

1.Transmission rate 12 Gbps.

2. Meet SAS3.0 specification.



Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 55 N maximum.

Unmating Force: 49 N maximum.



Electrical Performance

1. Contact Current Rating

0.5Amperes maximum per pin when mated.

2. Voltage Rating

30VAC per contact when mated or unmated.

3.Contact Resistance

30mohm max. initial, 15mohm maximum after stress test.

  4  Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

  5 .Insulation Resistance

  1000 Mohm minimum.



Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

5. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

6. Crosstalk: -35 dB up to 6Ghz



Product Environmental Compliance

        RoHS 2.0: RoHS2.0 Compliant

        ChinaRoHS: Yes

        REACH SVHC: Yes

        Low-Halogen Status: Not Reviewed


Packing

        Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
