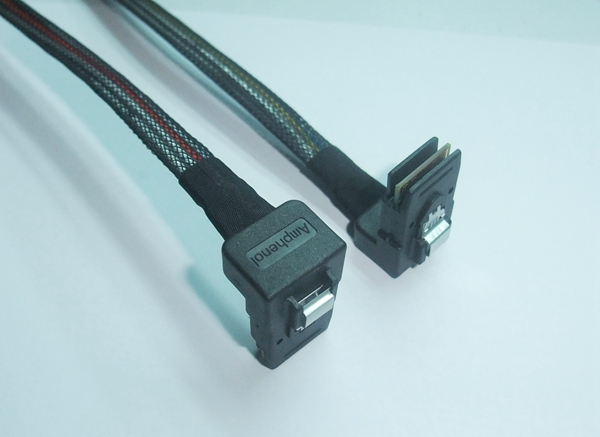

Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks )
2. Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12 Gbps.
2. Meet SAS3.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum.
Unmating Force: 49 N maximum.
Electrical Performance
1. Contact Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4 Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5 .Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Pair Matching: ±5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz; 11dB maximum up to 9Ghz.
6. Crosstalk: -35 dB up to 6Ghz
Product Environmental Compliance
RoHS 2.0:Meet RoHS2.0 Compliant
ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
