Applications

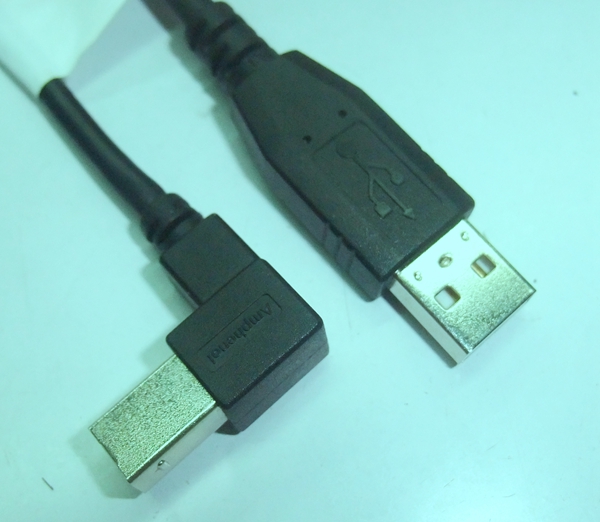

Connect Desktop/Notebook with peripheral, such as Scanner and Printer

Features and Benefits

1. USB 2.0 transfer rate up to the maximum 480Mbps

2. Downward compatible with USB1.0/1.1 devices

3. Provide with both data transmission and charging

4. Provide blind mate

Mechanical Performance

1. Mating Force and Unmating Force

     Condition: EIA 364-13, at a max rate of 12.5mm per minute.

     Requirement:

     Mating Force:  35N max.

     Unmating Force: 10N min initial.

2. Durability

     Condition: EIA 364-09, at a max rate of 500 cycles per hour

     Requirement: No physical damage after 1500 cycles mating.

Electrical Performance

1. Contact Resistance

   30mohm max,+10mohm max change for post test

2. Dielectric Withstanding Voltage 300VAC/min.

    No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance

     20M ohm min

4. Contact Capacitance

     2PF max unmated per contact

5. Differential  Impedance

    90 ohm +/- 15%

6. Common Mode

     30+/-30% (Ohms)

7. Cable Propagation Delay

     26ns Max

8. Cable Propagation Skew

      100ps for intra-pair Max

  9. Signal Attenuation

      USB Spec 2.0 section 7.1.17

      5.8dB max (at 400MHz)

      3.2dB max (at 200MHz)

      1.9dB max (at 96MHz)

Product Environmental Compliance

RoHS2.0: RoHS 2.0 Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed

Packing

      Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
