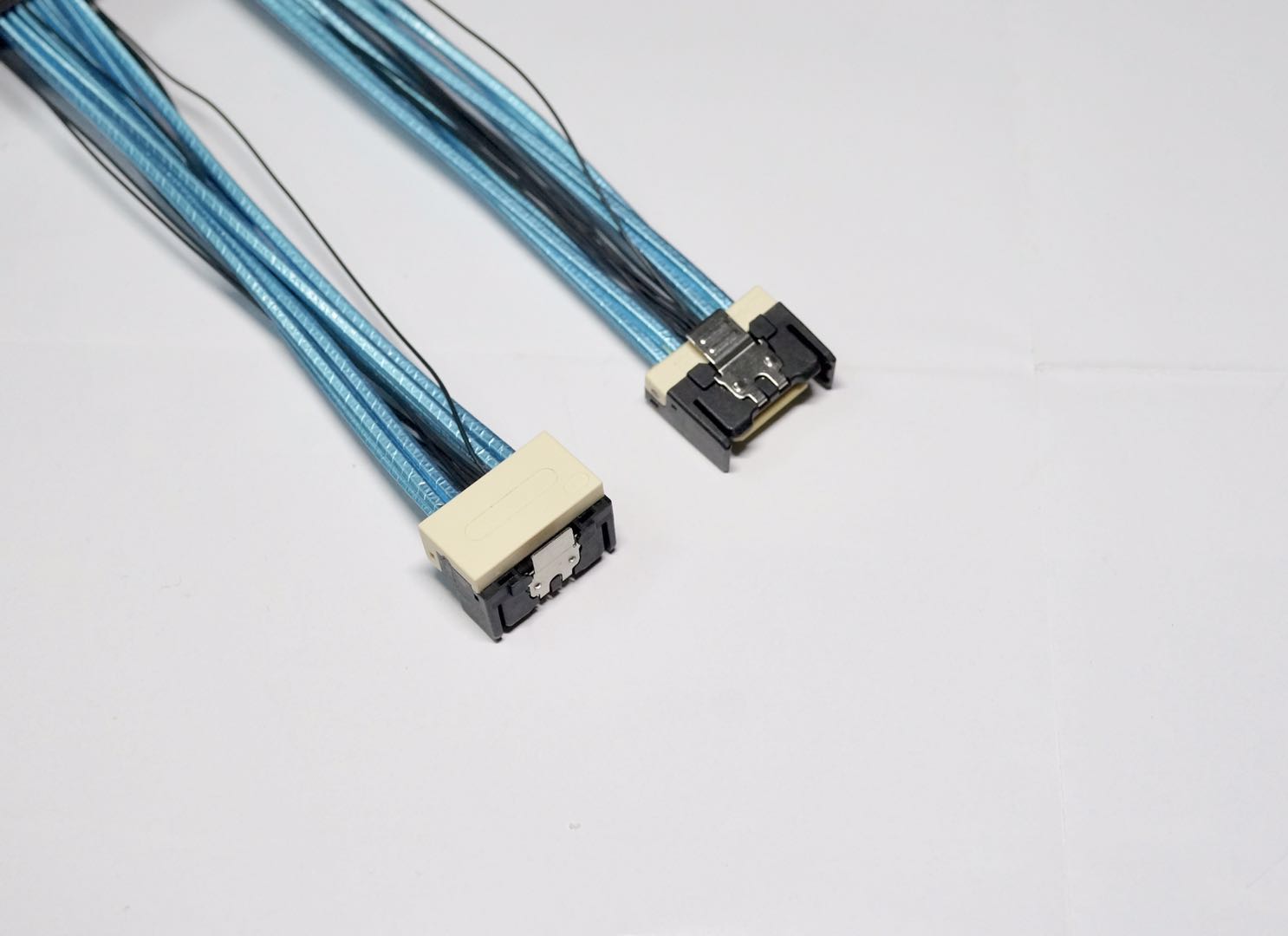

MCIO 38pos 95ohm straight

Product Description: MCIO 38pos 95 ohm Right angle Plug Cable Assembly
Series: MCIO
Signal Wire Size: 30AWG-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

MCIO 38pos 95ohm straight

Product Description: MCIO 38pos 95 ohm Right angle Plug Cable Assembly
Series: MCIO
Signal Wire Size: 30AWG-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Applications

1. Data center & Networking Equipment

2. Servers/Storage Devices

3. High Performance Computing (HPC)

4. Switches/Routers

5. Wireless Base Stations and Radios



Features and Benefits

1. Pitch 0.6mm 95 ohm impedance connector design
2. 1.57mm PCB card thickness compatible with PCIe riser card
3. Straight, right angle and customization cable plug are optional
4. 4X(38pin), 8X(50pin), 12X(74pin), 16X(100pin),16X/20X(124pin)

5. Support signaling rates up to 56G PAM4 and 112G PAM4

6. Support chip to external IO application
7. 30-34AWG cable



Mechanical Performance

1. Mating Force: 55.5N maximum

2. Unmating Force: 49N maximum

3. Rated durability cycles: 250 cycles minimum



Electrical Performance

1. Voltage: 30VAC per contact

2. Current: 0.5A per contact

3. Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5. Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

56G PAM4 and 112G PAM4


Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
