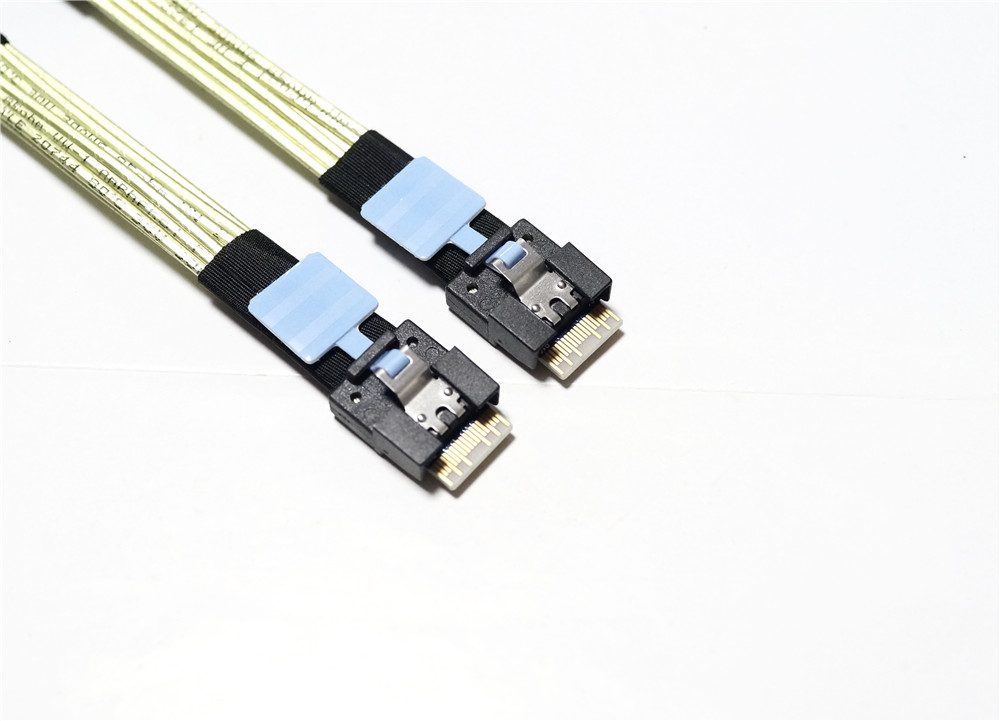

SlimSAS 4x STR Plug

Product Description: Narrow SlimSAS 4x Straight Cable Assembly
Series: SlimSAS
Signal Wire Size: 30-34AWG
Plating: SlimSAS connector Au 30u" or others
Color: Black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

SlimSAS 4x STR Plug

Product Description: Narrow SlimSAS 4x Straight Cable Assembly
Series: SlimSAS
Signal Wire Size: 30-34AWG
Plating: SlimSAS connector Au 30u" or others
Color: Black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Application

 1. Servers

 2. Data Storage

 3. Workstation



Features and Benefits

 1. Robust mechanical design

 2. Adopted by SFF committee(SFF-8654)

 3. 4x and 8x connector type, and support straight, right angle and side exit

 4. Pull tab is optional

 5. Connector pitch is 0.6mm, PCB thickness is 1.0mm



Mechanical Performance

 1. Mating Force: 55.5N maximum

 2. Unmating Force: 49N maximum

 3. Rated durability cycles: 250 cycles minimum


Electrical Performance

1. Voltage: 30VDC per contact

2. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

3. Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

 1. PCIe Gen4

 2. PCIe Gen5

 3. SAS4.0

 4. UPI1.0



Product Environmental Compliance

 1. RoHS2.0: Compliant

 2. China RoHS: Yes
 3. REACH SVHC: Yes
 4. Low-Halogen Status: Not Reviewed



Packing

 Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
