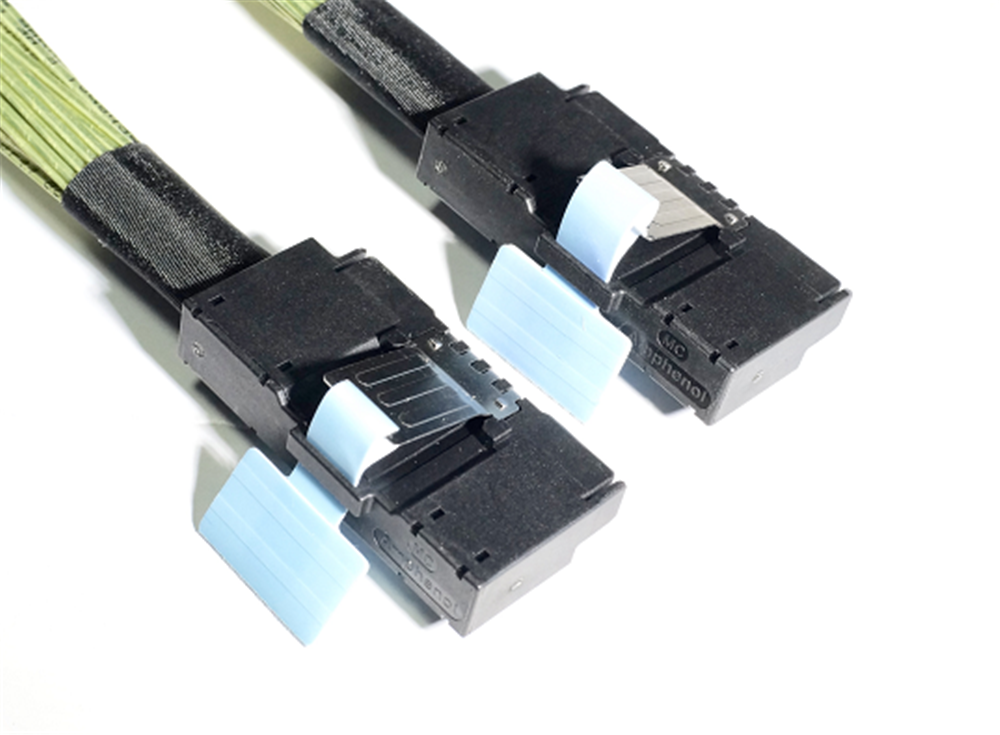

Low Profile SlimSAS 16x RSE Plug with Pull Tab

Product Description: Ultraport Low Profile SlimSAS 16x RSE Cable Assembly with Pull Tab
Series: SlimSAS LP
Cable Length: 0.3 meters
Signal Wire Size: 32AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Low Profile SlimSAS 16x RSE Plug with Pull Tab

Product Description: Ultraport Low Profile SlimSAS 16x RSE Cable Assembly with Pull Tab
Series: SlimSAS LP
Cable Length: 0.3 meters
Signal Wire Size: 32AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
3D Tooled Connectors (Any 3D equest, please contact us further)

Applications

1.     High end server

2.     Switch

3.     Router

4.     Base station



Features and Benefits

1.     Smaller size than 4pcs 4x LP SlimSAS connectors with 0.6mm pitch

2.     Low loss, optimized NEXT (-45dB at 12.89GHz) and FEXT (-40dB at 12.89GHz)

3.     Support UPI 11.2GT/s, SAS4.0 24Gbps,  25Gbps and PCIe 4.0 16Gbps per lane

4.     Impedance 85 ohm

5.     34-30AWG cables are optional



Mechanical Performance

1.     Mating Force: 55.5N maximum

2.     Unmating Force: 49N maximum

3.     Rated durability cycles: 250 cycles minimum



Electrical Performance

1.     Voltage: 30VAC per contact

2.     Current: 0.5A per contact

3.     Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4.     Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5.     Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1.      Mated Connector Impedance: 85+/-10% ohm @25ps RT

2.      SCD21: meet SAS4.0 and PCIe4.0 spec

3.      FEXT: meet SAS4.0 and PCIe4.0 spec

4.      NEXT: meet SAS4.0 and PCIe4.0 spec

5.      Insertion loss: meet SAS4.0 and PCIe4.0 spec



Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
