SlimSAS® 16i 124pos Straight

Product Description: Ultraport SlimSAS 16x Straight to Straight Cable Assembly
Series: SlimSAS
Cable Length: 1 meters
Signal Wire Size: 30-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

SlimSAS® 16i 124pos Straight

Product Description: Ultraport SlimSAS 16x Straight to Straight Cable Assembly
Series: SlimSAS
Cable Length: 1 meters
Signal Wire Size: 30-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

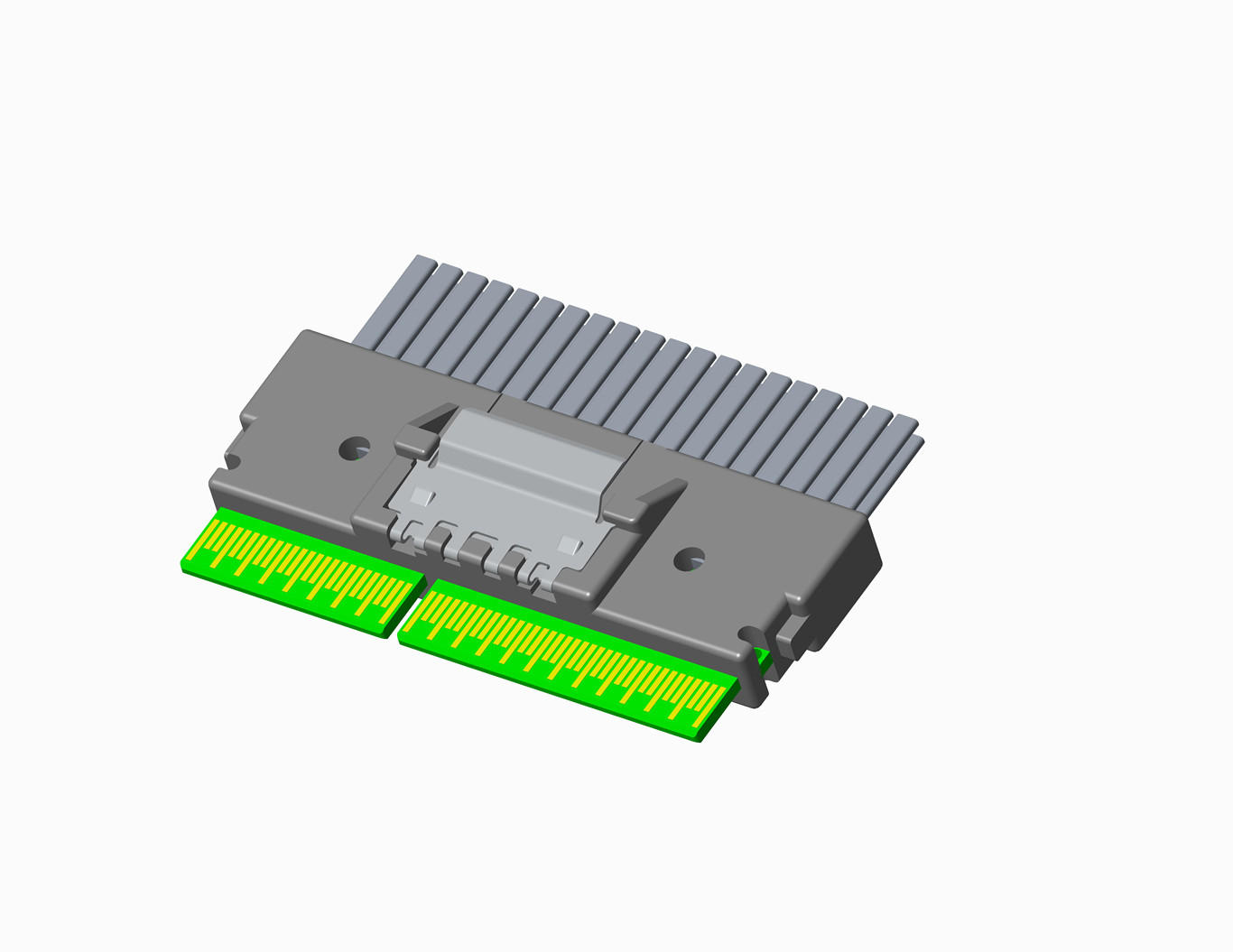

3D Tooled Connectors (Any 3D equest, please contact us further)

Applications

1.     High end server

2.     Switch

3.     Router

4.     Base station



Features and Benefits

1.      Support cable to board application: 1.0mm PCB card thickness

2.      16 channels(16X) can be expanded to 20 channels when sidebands are used with high speed signal pairs

3.      Small size design with great robustness : pitch 0.6mm connector and max 25N wrenching test

4.      Excellent SI performance: signal rates up to UPI1.0 11.2GT/s, PCIe4 16GT/s, SAS 4.0 24Gbps and OpenCAPI 25Gbps

5.      Compatible with many different industry standards and protocols including SAS, PCIe and 25G Ethernet

6.      85 ohm impedance. 100 ohm will be available in the future on customer request

7.      30-34AWG cables are available for both discrete and ribbon cable

8.      RoHS compliant. Halogen free is available on request



Mechanical Performance

1.     Mating Force: 67N maximum

2.     Unmating Force: 49N maximum

3.     Rated durability cycles: 250 cycles minimum



Electrical Performance

1.     Voltage: 30VAC per contact

2.     Current: 0.5A per contact

3.     Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4.     Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5.     Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1.      Mated Connector Impedance: 85+/-10% ohm @25ps RT

2.      SCD21: meet SAS4.0 and PCIe4.0 spec

3.      FEXT: meet SAS4.0 and PCIe4.0 spec

4.      NEXT: meet SAS4.0 and PCIe4.0 spec

5.      Insertion loss: meet SAS4.0 and PCIe4.0 spec



Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
