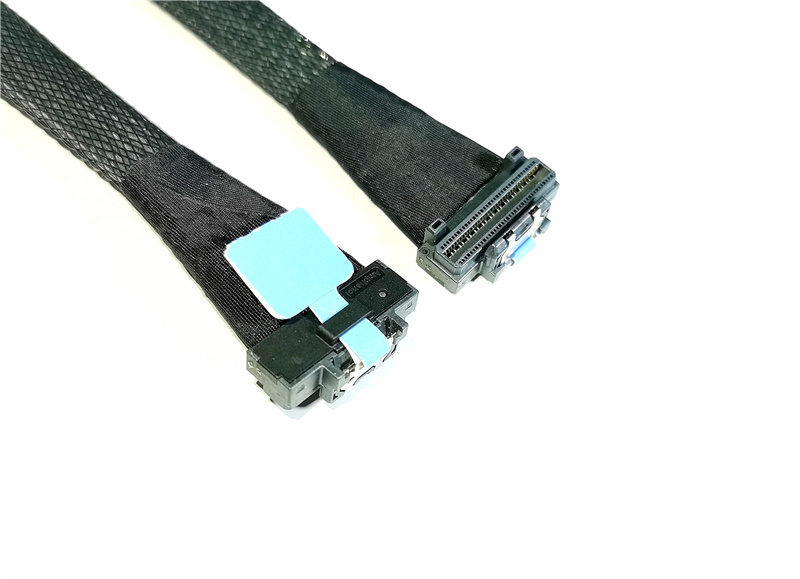

Swift 8X Right Angle

Part Number: RSW50-XXXX
Product Description: Extremeport-Swift 8x Right Angle to Right Angle Cable Assembly
Series: Extremeport-Swift
Cable Length: 1 meters
Signal Wire Size: 32-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Swift 8X Right Angle

Part Number: RSW50-XXXX
Product Description: Extremeport-Swift 8x Right Angle to Right Angle Cable Assembly
Series: Extremeport-Swift
Cable Length: 1 meters
Signal Wire Size: 32-34AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
3D Tooled Connectors (Any 3D equest, please contact us further)

Applications

1.      Servers and storage devices

2.      High performance computing

3.      Data center and networking equipment

4.      Wireless base stations and radios



Features and Benefits

1.      Low height and small pitch design: average pitch 0.7mm

2.      Multiple channels: 8X(50pos.), 4X/12X/14X/16X and other position connectors to tool on request

3.      Excellent SI performance: signal rates up to SAS 24Gbps, PCIe5 32GT/s, 56 GT/s PAM4 now and scalable to 112 GT/s PAM4 in the future

4.      Supports 85 ohm impedance applications

5.      32-34AWG are available for both discrete and ribbon cable

6.      RoHS compliant. Halogen free is available on request



Mechanical Performance

1.      Mating Force: 20N maximum

2.      Unmating Force: 10N minimum

3.      Rated durability cycles: 250 cycles minimum



Electrical Performance

1.      Voltage: 30VAC per contact

2.      Current: 0.5A per contact

3.      Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4.      Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5.      Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1.      Mated Connector Impedance: 85ohm

2.      SCD21: meet SAS4.0 and PCIe4.0 spec

3.      FEXT: meet SAS4.0, PCIe4.0 and 56GT/s PAM4 spec

4.      NEXT: meet SAS4.0, PCIe4.0 and 56GT/s PAM4 spec

5.      Insertion loss: meet SAS4.0, PCIe4.0 and 56GT/s PAM4 spec



Product Environmental Compliance

1.      RoHS2.0: Compliant

2.      China RoHS: Yes

3.      REACH SVHC: Yes

4.      Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
