HDMI AOC

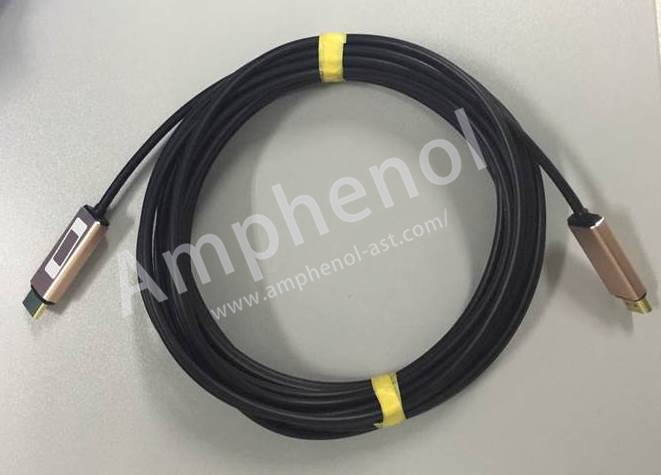

Product Description: HDMI A Plug to A Plug Active Optical Cable(AOC)
Series: AOC
Cable Length: 100 meters max.
Signal and Power Wire Size: Optical Fiber and copper wires
Lock to mating part: No
Plating: Au on terminals
Color: silver connector shell, black cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

HDMI AOC

Product Description: HDMI A Plug to A Plug Active Optical Cable(AOC)
Series: AOC
Cable Length: 100 meters max.
Signal and Power Wire Size: Optical Fiber and copper wires
Lock to mating part: No
Plating: Au on terminals
Color: silver connector shell, black cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Applications

1.      Digital Signage

2.      LED signboards in streets and in stadiums

3.      Medical Imaging Equipment

4.      Airplane On-board Video System

5.      Home Theater

6.      Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer

7.      TV Broadcast Station

8.      Conference Room Video Equipment

9.      Security systems



Features and Benefits

1.     Differential input 100 ohm

2.     The cable length can be up to 100 meter Max for AOC hybrid solution

3.     Support  high definition video transmission 4K @60Hz@100m

4.     O/E converter 4 channel 850nm fiber

5.     Support hot plug function

6.     Excellent  EMI/ESD performance to satisfy industrial environment requirements



Performance

1.        Option hybrid cable length: 20meter to 100meter

2.        Electrical test: according to HDMI2.0 eye diagram spec

3.        Display function test 4k *2k@ 60Hz

4.        Bending radius 20mm

5.        Connector impedance 100+/-10 ohm

6.        Operation Temp.: 0 to +50˚C

7.        Storage Temp.: -40˚C  to +70˚C



Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
