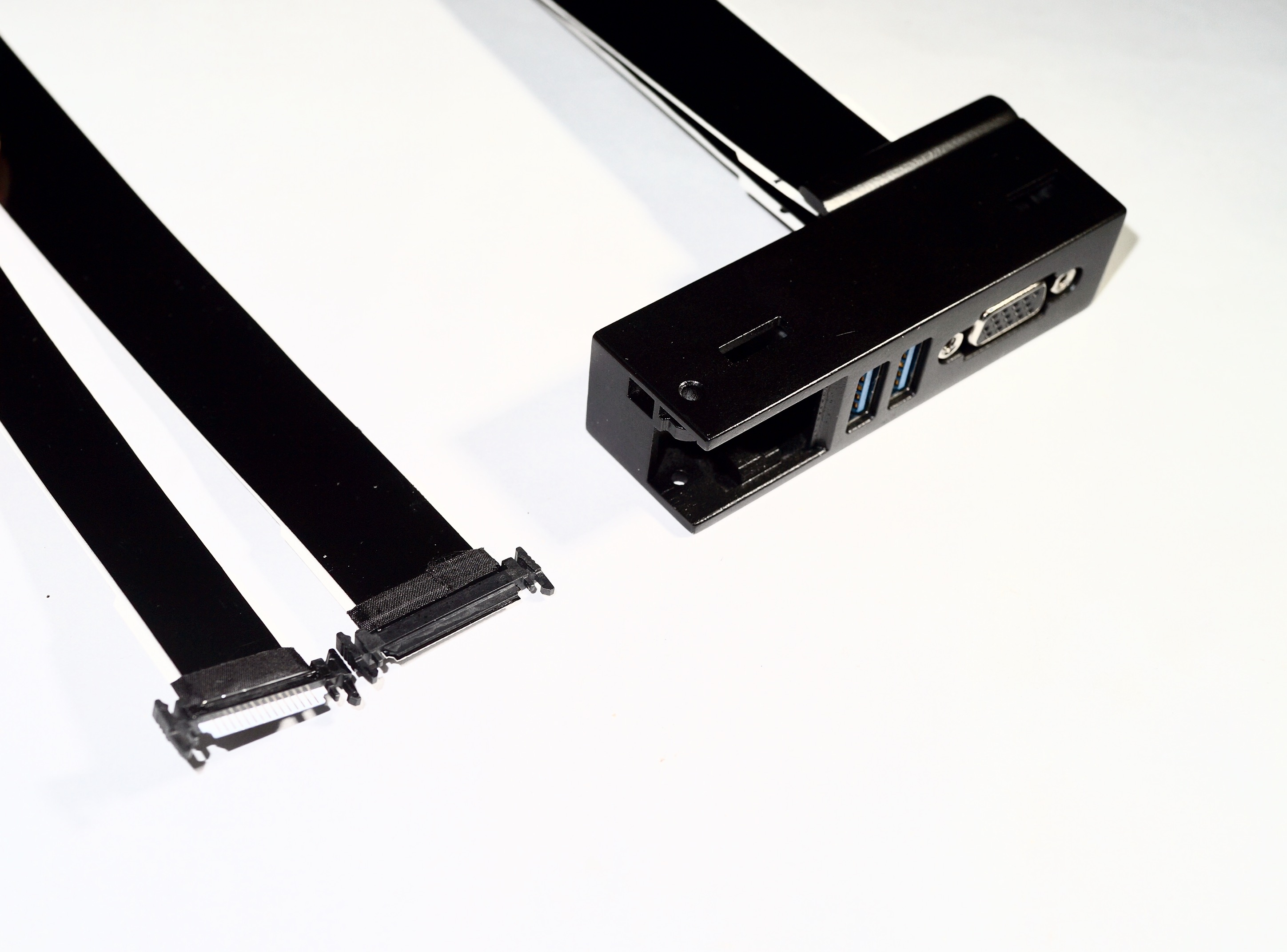

FFC & LIF to VGA + 2X USB3.0 A

Part Number: RWHRC-0308
Product Description: FFC & LIF to VGA + 2X USB3.0 A Cable Assembly
Series: Front IO
Cable Length: 0.62meters
Cable type: FFC
Lock to mating part: Yes
Plating: Au plated on USB and VGA receptacle, tin plated on FFC connector
Color: blue USB insulation, black VGA insulation, white/black FFC connector, white cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

FFC & LIF to VGA + 2X USB3.0 A

Part Number: RWHRC-0308
Product Description: FFC & LIF to VGA + 2X USB3.0 A Cable Assembly
Series: Front IO
Cable Length: 0.62meters
Cable type: FFC
Lock to mating part: Yes
Plating: Au plated on USB and VGA receptacle, tin plated on FFC connector
Color: blue USB insulation, black VGA insulation, white/black FFC connector, white cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
3D Tooled Connectors (Any 3D equest, please contact us further)

Applications

1. Audio and video transmission

2. Workstation

3. Consumer electronics

4. Server

5. Storage

6. Gaming

7. Vendor



Features and Benefits

1. High speed data transmission, such as USB2.0, USB3.0, video and audio

2. USB signal transmission speed up to 5Gbps

3. Hybrid FFC with power , differential pair, LED and switch control signal

4. Easy to assemble with locking latches

5. Easy to fold and easy routing

6. Lighter and thinner than copper cable
