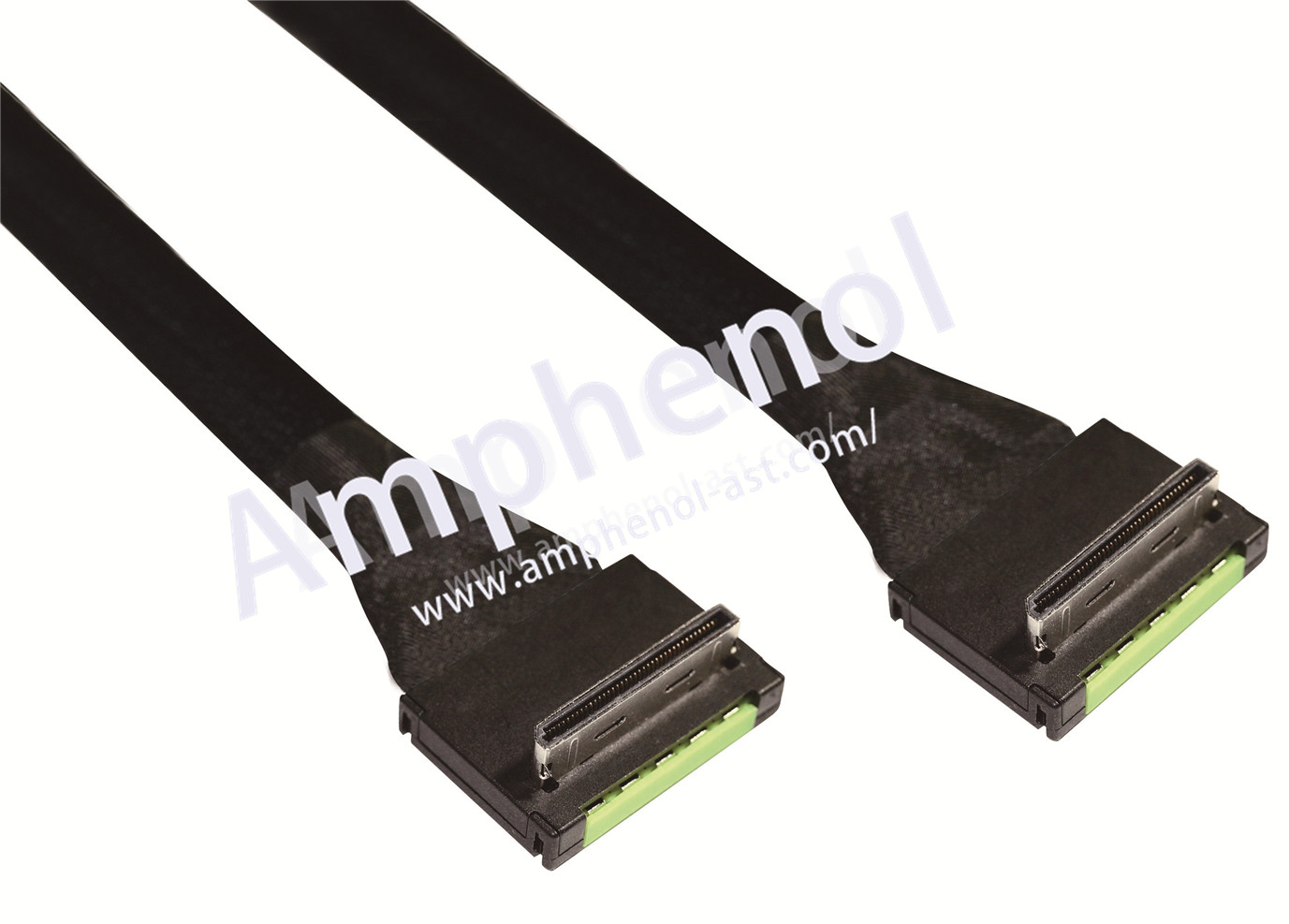

OCuLink 8i Right Angle to Right Angle

Part Number: RML80-XXXX
Product Description: OCuLink 8i Right Angle to Right Angle Cable Assembly
Series: OCuLink
Cable Length: 1m max.
Signal Wire Size: 30-34AWG (85ohm), 32-34AWG(100ohm)
Lock to mating part: With active or passive latch
Plating: Au 30u'' Min.
Color: Black
Environmental Compliance: RoHS
Flammability: Connector 94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

OCuLink 8i Right Angle to Right Angle

Part Number: RML80-XXXX
Product Description: OCuLink 8i Right Angle to Right Angle Cable Assembly
Series: OCuLink
Cable Length: 1m max.
Signal Wire Size: 30-34AWG (85ohm), 32-34AWG(100ohm)
Lock to mating part: With active or passive latch
Plating: Au 30u'' Min.
Color: Black
Environmental Compliance: RoHS
Flammability: Connector 94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Applications


1. Servers
2. Data Storage
3. Desktops
4. Workstation




Features and Benefits


1. Connector 8i: 80pin, 0.5mm pitch
2. Connectors with active and passive latch are optional
3. Impedance 85 ohm and 100 ohm are optional
4. 30AWG~34AWG loose cable or ribbon cable are optional
5. High speed reach PCIe Gen3 8GT/s per lane and SAS 24Gbps per lane
6. Meet PCIe OCuLink specification or SAS4.0 specification





Mechanical Performance

1. Mating Force (w/out latch): 2~20N.

    Connector W/Active latch: 8~40N

    Connector W/Passive latch: 10~40N

2. Un-mating Force (w/out latch): 1~16N

    Connector W/Active latch: 8~25N

    Connector W/Passive latch: 8~25N

3. Rated durability cycles: 50 cycles Min.



Electrical Performance


1. Voltage: 30VDC per contact
2. Contact Resistance: 30mohm max. initial, 15mohm maximum after stress test.
3. Dielectric Withstanding Voltage: 250 VDC minimum for 100 ms
4. Insulation Resistance: 100 MΩ minimum between adjacent terminal



Signal Integrity


1. Mated Connector Impedance: 85 ohm±15% or 100 ohm±15%
2. Common Mode Impedance: meet PCIe Gen3 specification
3. Insertion loss: meet PCIe Gen3 specification
4. Maximum Crosstalk: meet PCIe Gen3 specification




Product Environmental Compliance

RoHS2.0: Compliant

         China RoHS: Yes
         REACH SVHC: Yes
         Low-Halogen Status: Not Reviewed



Packing

         Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
