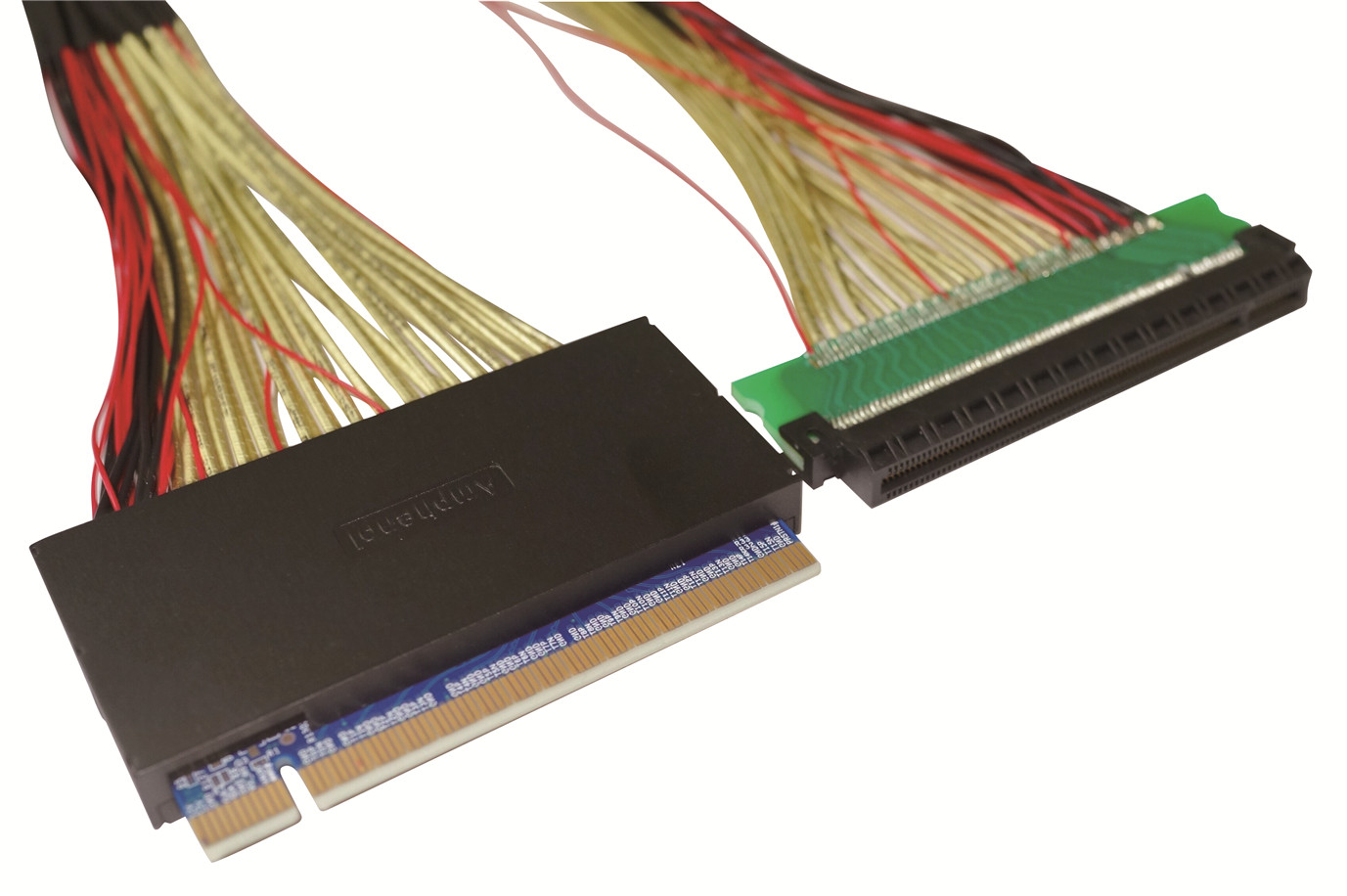

PCIe 164pin plug to receptacle with retimer
Part Number: RPC164-0017
Product Description: PCIe 16X 164pin plug to receptacle Cable Assembly with retimer
Series: PCI Express
Cable Length: 0.6 meters
Signal Wire Size: 30AWG Tinned Copper
Power Wire Size: 24AWG
Lock to Mating Part: No
Plating: Au over Ni
Color: Black connector, yellow cable
Environmental Compliance: RoHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

PCIe 164pin plug to receptacle with retimer

Part Number: RPC164-0017
Product Description: PCIe 16X 164pin plug to receptacle Cable Assembly with retimer
Series: PCI Express
Cable Length: 0.6 meters
Signal Wire Size: 30AWG Tinned Copper
Power Wire Size: 24AWG
Lock to Mating Part: No
Plating: Au over Ni
Color: Black connector, yellow cable
Environmental Compliance: RoHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

Applications

   1. Computing

   2. Storage

   3. Artificial Intelligence

   4. Machine Learning

   5. Natural Language Processing

   6. Image Recognition


Features and Benefits

   1. Use 16 Channels PCIE Signal Retimer with max. power 8.676 W, typical power is 6.677 W

   2. Retimer compensate for non-linear PCB trace and cable loss to 40 inches of FR4, eliminates input Random Jitter (Rj), Deterministic Jitter (Dj) and ISI,

   3. wide swing transmit driver offers up to 8dB of transmit deemphasis to meet the needs of the most challenging of backplanes.

   4. Support  max 8 GT/s  PCIe Gen3 signal transmission,

   5. Super SI performance

   6. Signal Cable for 32 differential pairs, power cable for LED and switch control signal
