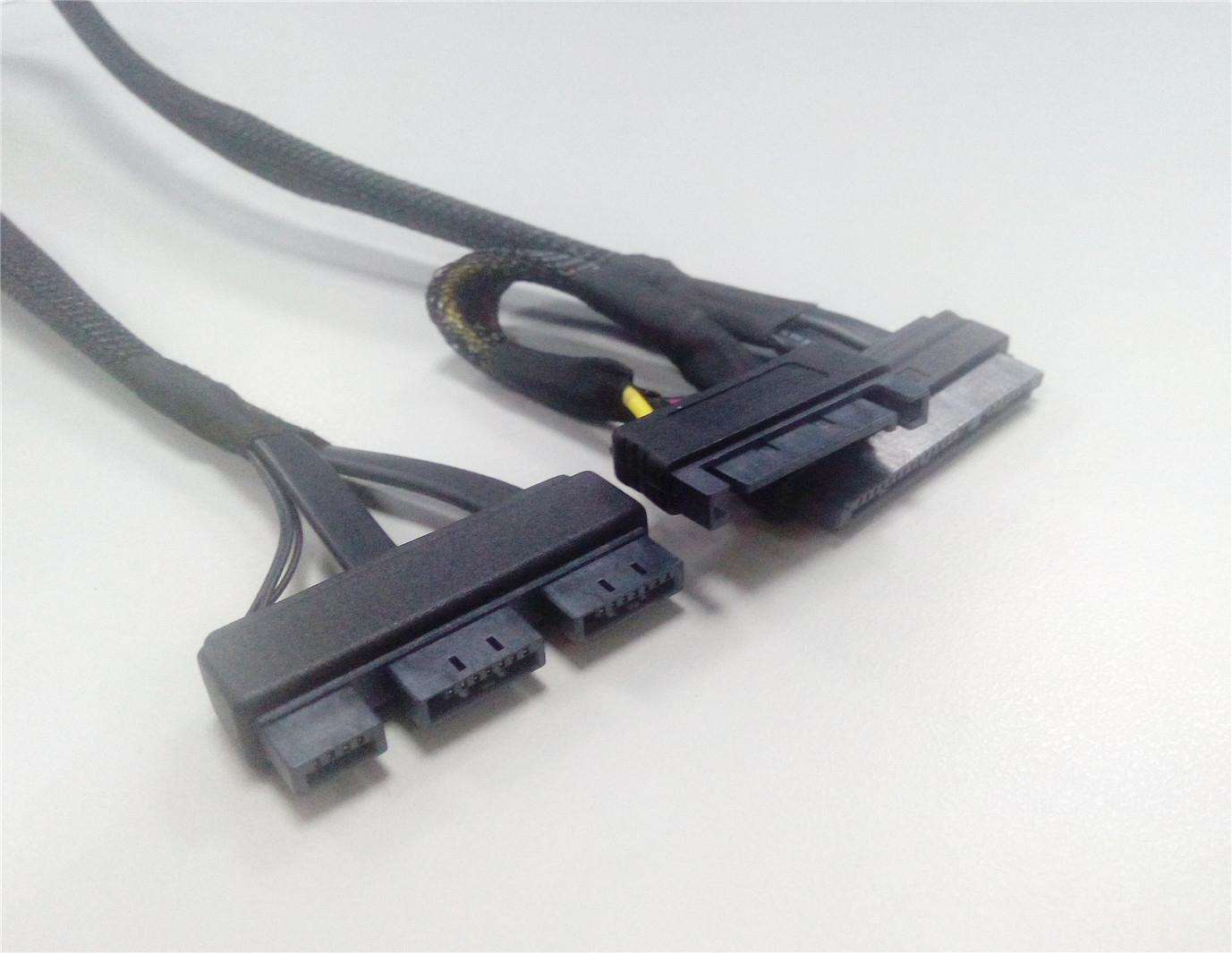

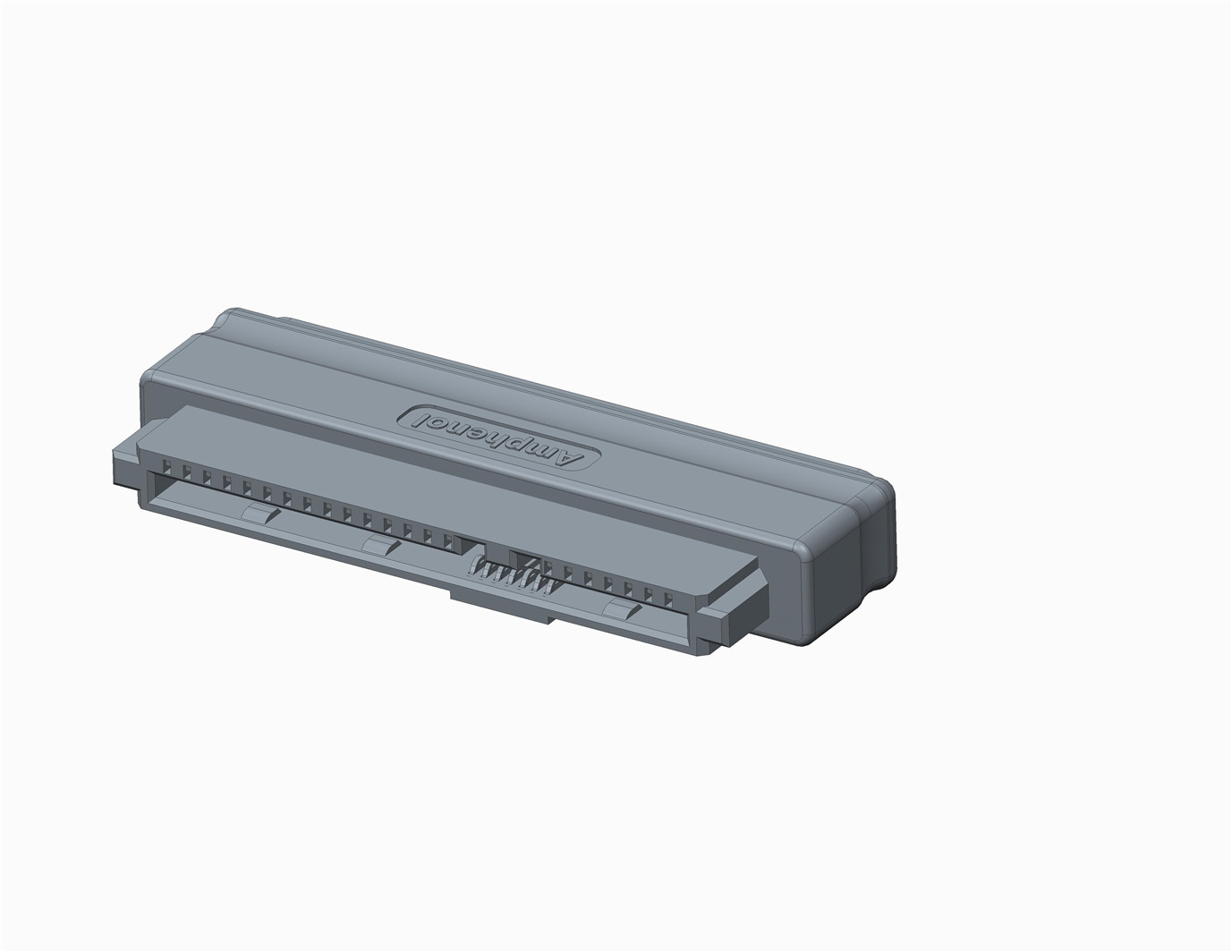

SATA_Express_18pin

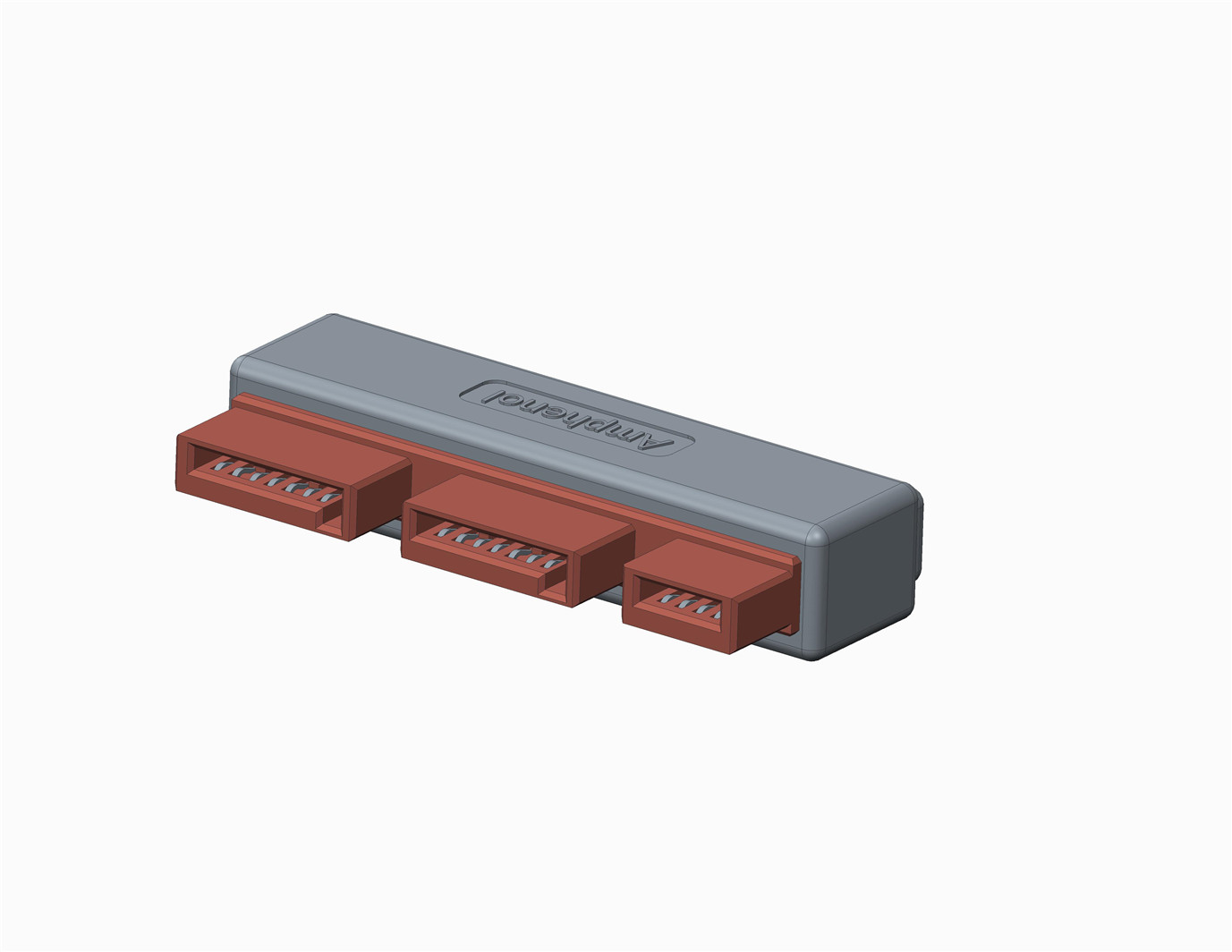

SATA_Express_29pin

Applications

   1. SATA/PCIe SSD

2. Data Storage

2. Desktop

3.Servers

4.Storage rack

5.PCIeSolidStateDisk

Features and Benefits

1. Data speed: 6Gbps.

2. Meet SATA 3.2 specification.

Mechanical Performance

1. Mating Force: 45 N maximum.

2. Un-mating Force: 10 N minimum.

3. Durability: 50 cycles minimum

Electrical Performance

1.Contact Resistance: 30mohm max

       2.Dielectric Withstanding Voltage: 500 VAC for 1 minute

3.Insulation Resistance: 500 Mega ohms minimum.

Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Insertion loss: -6dB maximum up to 4.5 GHz,

3. Maximum Crosstalk: -26 dB up to 4.5 GHz

Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
