SFF-8639 68 Pos to 68 Pos

Part Number:RFC68-0003

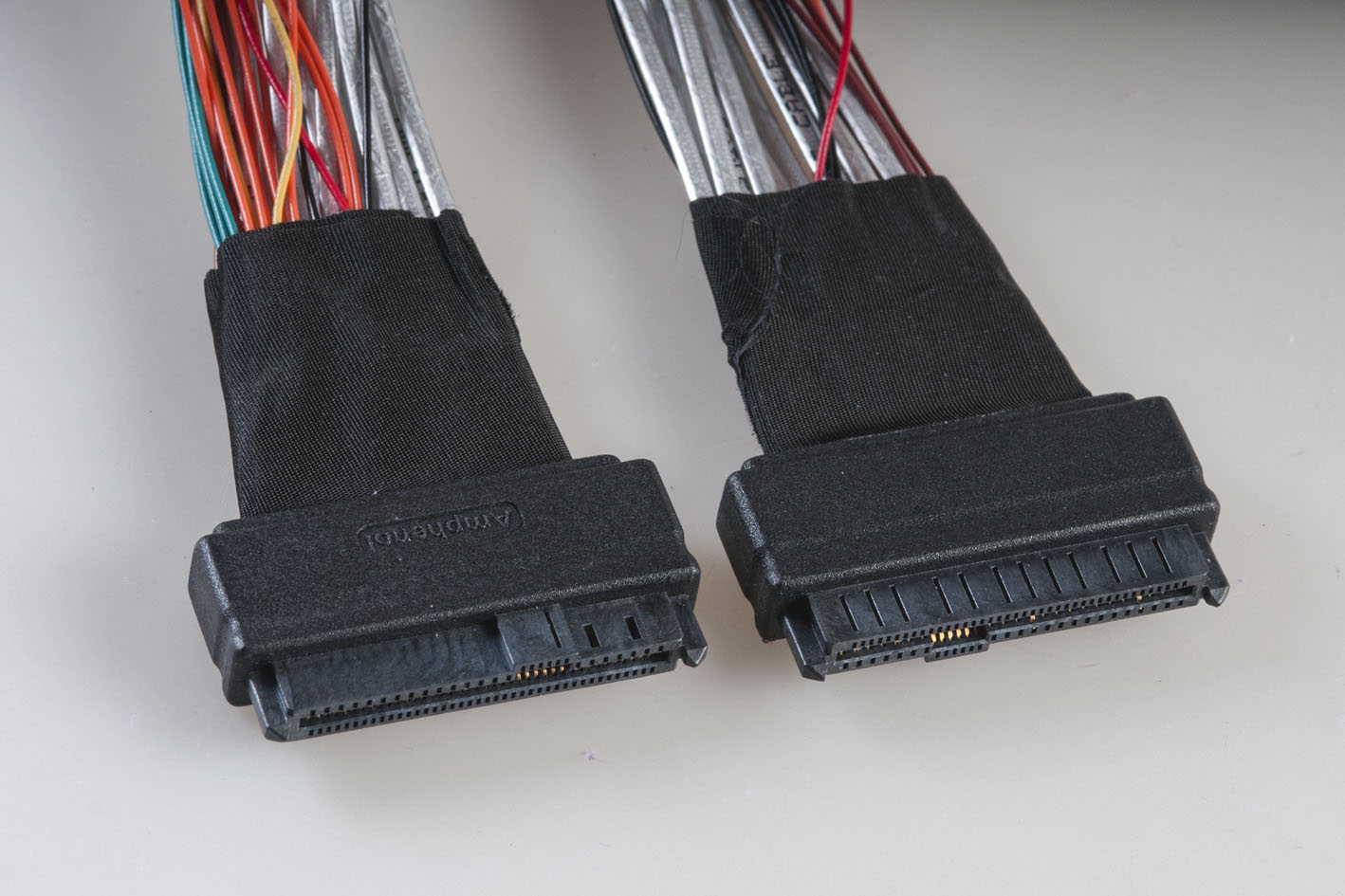

Product Description: SFF-8639 68P Straight to SFF-8639 68P Straight
Series: SFF-8639
Cable Length: 1.0 meters
Signal Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Power Wire Size:22AWG
Plating: Au 15u' min over Ni 100u' min
Color: Over mold Black
Environmental Compliance: RoHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

SFF-8639 68 Pos to 68 Pos

Part Number:RFC68-0003
Product Description: SFF-8639 68P Straight to SFF-8639 68P Straight
Series: SFF-8639
Cable Length: 1.0 meters
Signal Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Power Wire Size:22AWG
Plating: Au 15u' min over Ni 100u' min
Color: Over mold Black
Environmental Compliance: RoHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
3D Tooled Connectors (Available)

Applications

    1.Data Storage

2.RAID (Redundant Array of Independent Disks )

3.Workstations

4.Rack-mount server

5.Servers

6.Storage rack

7.SolidStateDisk



Features and Benefits

1.Transmission rate 12 Gbps.

2. Meet SAS3.0 specification.



Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 59 N maximum.

Unmating Force: 12 N minimum.



Electrical Performance

1.Contact Resistance

       30mohm max. initial, 15mohm maximum after stress test.

2.Dielectric Withstanding Voltage

       500 VAC for 1 minute no breakdown.

3.Insulation Resistance

1000 Mega ohms minimum.



Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

5. Insertion loss: -6dB maximum up to 4.5 GHz, 11dB maximum up to 9GHz.

6. Crosstalk: -35 dB up to 6GHz



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
