Micro-B Plug to HDMI Plug Passive

Part Number: RHMUB-0007
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)

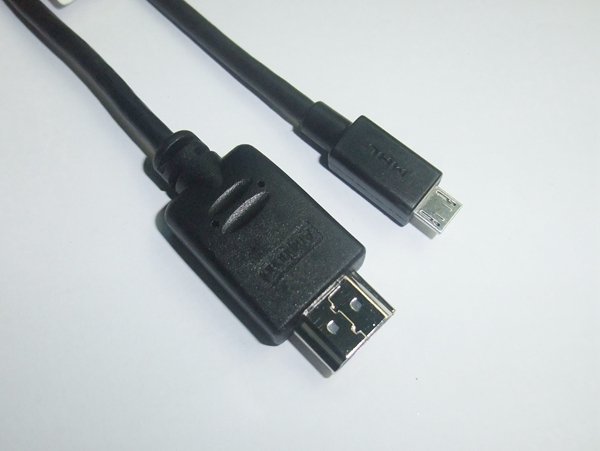

Product Description: Micro-USB B Plug to HDMI Plug Passive Cable Assembly
Series:MHL
Cable Length:1.5 meters
Wire Size:30AWG*1P+#28*3C+AB.OD:4.0MM
Plating:Au(30u” min) over Ni(50u' min)
Color: Black
Environmental Compliance:ROHS
Flammability:Cable VW-1, Overmold 94V-0

Micro-B Plug to HDMI Plug Passive

Part Number: RHMUB-0007
(Note: The part number is only for reference. If you have requirement,
please contact Amphenol for further confirming PN and drawing)
Product Description: Micro-USB B Plug to HDMI Plug Passive Cable Assembly
Series:MHL
Cable Length:1.5 meters
Wire Size:30AWG*1P+#28*3C+AB.OD:4.0MM
Plating:Au(30u” min) over Ni(50u' min)
Color: Black
Environmental Compliance:ROHS
Flammability:Cable VW-1, Overmold 94V-0
Drawings
Product Drawing
Mechanical Performance & Signal Integrity Report
Test Report
3D Tooled Connectors (Any 3D equest, please contact us further)

Applications

1.Connect Cell phone and HDTV via MHL cable assembly for Play HD video up to 1080P

2.Control HDTV via cell phone



Features and Benefits

The passive MHL-HDMI cable assembly features a 5-pin microUSB plug on one end and HDMI-A (female) on the other. This cable assembly connects a MHL-enabled portable device to an MHL HDTV, and its small form factor makes it easy to carry around with your mobile device.

This cable assembly features:

1.1080p HD video

2.Digital audio

3.Simultaneous charging to the mobile device

4.TV remote access and control on mobile device



Mechanical Performance

1. Mating Force and Unmating Force

Condition: EIA 364-13,USB2.0 Micro B plug at a max rate of 12.5mm per minute.

Requirement:

Mating Force: 35N max.

Unmating Force: Micro-B plug 8N min initial.

HDMI A Plug at a max rate of 25.0mm per minute.

Requirement:

Mating Force: 39.2N max.

Unmating Force: HDMI A Plug 9.8N min initial.

2. Durability

   Condition: EIA 364-09, USB 2.0 Micro B at a max rate of 500 cycles per hour

   Requirement:

   No physical damage of Micro-USB B plug after 10000 cycles mating

   HDMI A plug at a max rate of 100 cycles per hour

   Requirement:

   No physical damage of HDMI A Plug after 10000 cycles mating

3. Cable Flex

   Apply a 40N static axial load 15cm

   Requirement: There shall be no demage and open/short failure

4. Bend test

USB 2.0 Micro B:

Apply a 200g static load at a distance 15cm from the SR.  Bend the SR at a bending angle of +/-90 o for 1000cycles at a speed 40 cycles/minute.

Requirement: There shall be no open/short failure



Electrical Performance

1. Contact Resistance

30mohm max,+10mohm max change for post test

2. Dielectric Withstanding Voltage

300VAC/min. No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance



Product Environmental Compliance

RoHS 2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

Per Amphenol’s Site Operating Procedure #SOP-708 REV 2
