SAS 32P to 4X SAS 22 + Power

Part Number: RSS32-0172
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

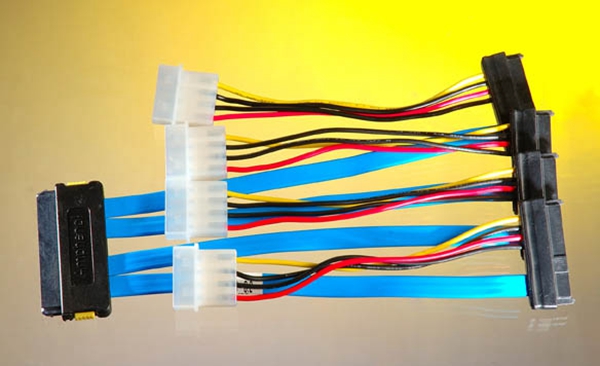

Product Description: SAS Multilane 32P to 4X SAS with Power Connector
Series: SAS
Cable Length: 0.55 meters
SATA Wire Size: 26AWG, Tinned Copper, OD:2.3*8.5MM
Plating: Au15u” over Ni
Color: Cable RED , Over mold Black
Environmental Compliance: ROHS2.0
Flammability: Cable VW-1, Overmold 94V-1

SAS 32P to 4X SAS 22 + Power

Part Number: RSS32-0172
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: SAS Multilane 32P to 4X SAS with Power Connector
Series: SAS
Cable Length: 0.55 meters
SATA Wire Size: 26AWG, Tinned Copper, OD:2.3*8.5MM
Plating: Au15u” over Ni
Color: Cable RED , Over mold Black
Environmental Compliance: ROHS2.0
Flammability: Cable VW-1, Overmold 94V-1
Drawings
Product Drawing
Mechanical Performance & Signal Integrity Report
Test Report
3D Tooled Connectors (Any 3D equest, please contact us further)

Applications

    Data/Communications

1.Independent Disks

2.Workstations

3.Servers

4.Storage rack



Features and Benefits

1. Transmission rate 6 Gbps.

2. Meet SAS 3.0 specification.



Mechanical Performance

1. Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 12.5mm/minute.

Mating Force: 45 N maximum

UnMating Force: 20 N Min.

2. Durability:

Condition: EIA 364-09. Mated and Unmated connector for 50cycles at a rate of 200 cycles

per hour. No physical damage and shall meet requirements of subsequent test.



Electrical Performance

1. Contact Resistance

    Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV maximum. Open circuit at 100mA maximum. 30 mohm max, initial per contact mated pair. 15 mohm max, after stress per contact mated pair.

2. Dielectric Withstanding Voltage

    Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies. The dielectric shall withstand 500 VAC for 1 minute at sea level. No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance

    Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies.

    The IR shall be 1000 Mohm min.



Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25~ 40 ohms

5. Insertion loss: -6dB maximum

6. Crosstalk: -26 dB

7. Rise Time:85 ps

8. Propagation Delay Skew: 10 ps maximum



Product Environmental Compliance

RoHS2.0: RoHS 2.0 compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed
