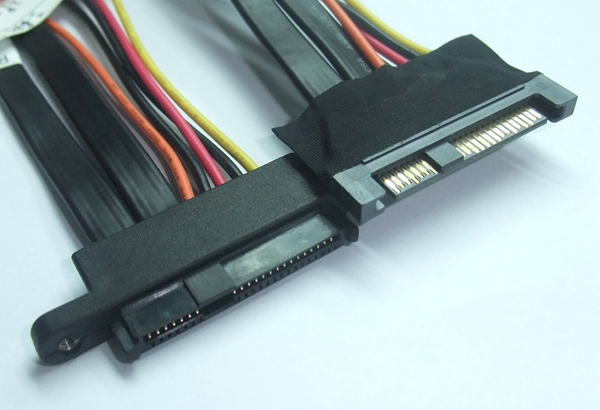

SAS 29P Male to 29P Female

Part Number: RSS29-0089
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: SAS 29P Male to Female
Series: SAS
Cable Length: 0.5 meters
Wire Size: SATA Cable 26AWG,Tinned Copper,OD: 2.29*8.25MM
UL1007,18AWG, Tinned Copper, OD: 2.1MM
Plating: Au 15u” over Ni 50u”
Color: Cable Red、Red、Black、Yellow, Over mold Black
Environmental Compliance:ROHS2.0
Flammability:Cable VW-1,Overmold 94V-1 Or Better

SAS 29P Male to 29P Female

Part Number: RSS29-0089
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: SAS 29P Male to Female
Series: SAS
Cable Length: 0.5 meters
Wire Size: SATA Cable 26AWG,Tinned Copper,OD: 2.29*8.25MM
UL1007,18AWG, Tinned Copper, OD: 2.1MM
Plating: Au 15u” over Ni 50u”
Color: Cable Red、Red、Black、Yellow, Over mold Black
Environmental Compliance:ROHS2.0
Flammability:Cable VW-1,Overmold 94V-1 Or Better
Drawings
Product Drawing
Mechanical Performance & Signal Integrity Report
Test Report
3D Tooled Connectors (Available)

Applications

    Data/Communications

1.Independent Disks

2.CD driver

3.Workstations

4.Servers

5.Storage rack



Features and Benefits

1. Transmission rate 6 Gbps.

2. Meet SAS 3.0 specification.



Mechanical Performance

1. Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 50 N maximum

Unmating Force: 20 N minimum

2. Durability:

Condition: EIA 364-09. Mated and Unmated connector for 25cycles at a rate of 200 cycles per hour.

There shall be no physical damage and shall meet requirements of subsequent test.



Electrical Performance

1. Contact Resistance

Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV maximum. Open circuit at 100mA maximum.

30 mohm maximum, initial per contact mated pair.

2. Dielectric Withstanding Voltage

Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies. The dielectric shall withstand 500 VAC for 1 minute at sea level.

No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance

Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies.

The IR shall be 1000 Mohm minimum.



Signal Integrity:

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25~ 40 ohms

5. Insertion loss: -6dB maximum

6. Crosstalk: -26 dB

7. Propagation Delay Skew: 10 ps maximum



Product Environmental Compliance

RoHS2.0: RoHS 2.0 compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed
