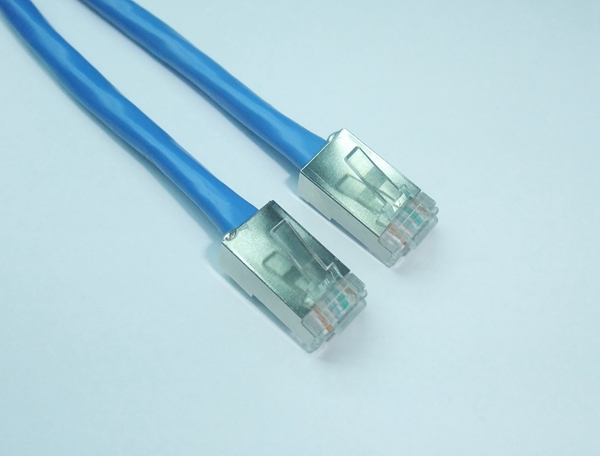

RJ45 to RJ45 CAT6 LAN Cable

Part Number: RRJ45-0263<br/>(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: RJ45 Plug to RJ45 Plug CAT6 LAN Cable Assembly
Series: LAN CABLE
Cable Length: 0~70 meters
Cable: STP 26AWG*4P OD=6.0mm
Lock to mating part: With latch
Plating: Au 0~50u'
Environmental Compliance: RoHS

RJ45 to RJ45 CAT6 LAN Cable

Part Number: RRJ45-0263<br/>(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: RJ45 Plug to RJ45 Plug CAT6 LAN Cable Assembly
Series: LAN CABLE
Cable Length: 0~70 meters
Cable: STP 26AWG*4P OD=6.0mm
Lock to mating part: With latch
Plating: Au 0~50u'
Environmental Compliance: RoHS

Applications

Data/Communications

1. High-speed switch-to-switch links in data centers.

2. High-speed server interconnects in server clusters.

3. Storage Area Networking (SAN)



Features and Benefits

1.Transmission rate 1 Gbps.

2.Comply with ANSI/TIA-568-C



Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 10mm/minute.

Mating Force: 35 N maximum.

Unmating Force: 50 N minimum.



Electrical Performance

1. Voltage Rating

30VAC per contact when mated or unmated.

2. Contact Resistance

30mohm max. initial, 50mohm maximum after stress test.

3. Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

4. Insulation Resistance

1000 Mohm minimum.



Product Environmental Compliance

RoHS2.0:  RoHS 2.0 Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

Per Amphenols Site Operating Procedure #SOP-708 REV 2
