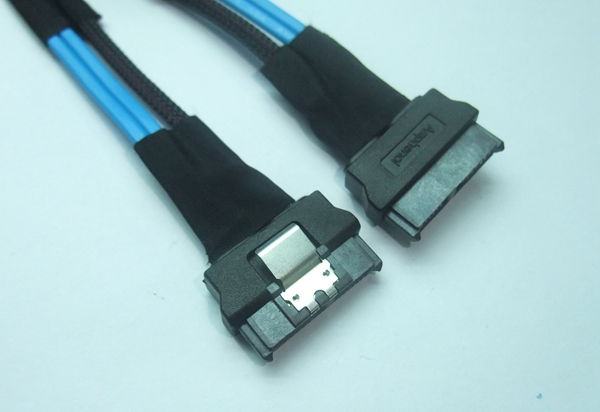

Slim SATA Female to Female

Part Number: RST13-0113
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Slim SATA 6+7P Female to Female
Series: SATA
Cable Length: 0.325 meters
Wire Size: SATA Cable 30AWG, Tinned Copper, OD 1.70*5.70MM
UL1007, 24AWG, Tinned Copper, OD 1.4MM
Plating: Au 15u” over Ni 50u”
Color: Cable Red、Black, Over mold Black
Environmental Compliance: RoHS
Flammability: Cable VW-1, Overmold 94V-0

Slim SATA Female to Female

Part Number: RST13-0113
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: Slim SATA 6+7P Female to Female
Series: SATA
Cable Length: 0.325 meters
Wire Size: SATA Cable 30AWG, Tinned Copper, OD 1.70*5.70MM
UL1007, 24AWG, Tinned Copper, OD 1.4MM
Plating: Au 15u” over Ni 50u”
Color: Cable Red、Black, Over mold Black
Environmental Compliance: RoHS
Flammability: Cable VW-1, Overmold 94V-0

Applications

    Data/Communications

1.CD driver

2.Workstations

3.Servers

4.Storage rack



Features and Benefits

1. Transmission rate 6 Gbps

2. Meet SATA 3.0 specification

3. Latch lock to mating connector



Mechanical Performance

1. Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 12.5mm/minute.

Mating Force: 45 N maximum

Unmating Force: 15 N minimum for cycles 1through 5.Extraction force 10N min after 50 mating/unmating(at rate of 200cycles per hour) cycles.

2. Durability:

Condition: EIA 364-09. Mated and Unmated connector for 50cycles at a rate of 200 cycles per hour.

No physical damage and shall meet requirements of subsequent test.



Electrical Performance

1. Contact Resistance

Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV maximum. Open circuit at 100mA maximum.

30 mohm max, initial per contact mated pair. 15 mohm max, after stress per contact mated pair.

2. Dielectric Withstanding Voltage

Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies. The dielectric shall withstand 500 VAC for 1 minute at sea level.

No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance

Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies.

The IR shall be 1000 Mohm min.



Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25~ 40 ohms

5. Insertion loss: -6dB max

6. Crosstalk: -26 dB

7. Rise Time:85 ps

8. Propagation Delay Skew: 10 ps max



Product Environmental Compliance

RoHS2.0: RoHS 2.0 Compliant
