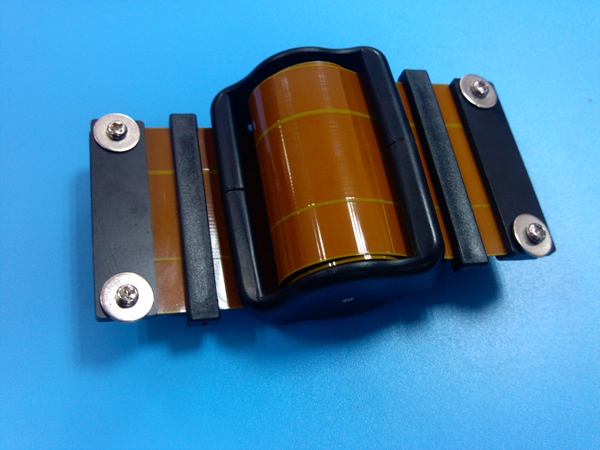

Retractor

Applications

    Data/Communications

1.RAID (Redundant Array of Independent Disks )

2.Workstations

3.Rack-mount server

4.Servers

5.Storage rack

Features and Benefits

1. Transmission rate 3 Gbps.

2. Flexible and compact

3. Provide up to 610mm connection extension length

Mechanical Performance

Mechanical cycle: 3000 min

Electrical Performance

1. Contact Current Rating

0.5Amperes maximum per pin when mated.

2. Voltage Rating

12VAC per contact when mated or unmated.

3. Contact Resistance

30mohm max. initial, 30mohm maximum after stress test.

4. Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

5. Insulation Resistance

10 Mohm minimum.

Signal Integrity

1. Differential impedance: 85±8.5Ω

2. Attenuation: -10+/-2 dB at 3GHz

Product Environmental Compliance

RoHS2.0: RoHS 2.0 Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
