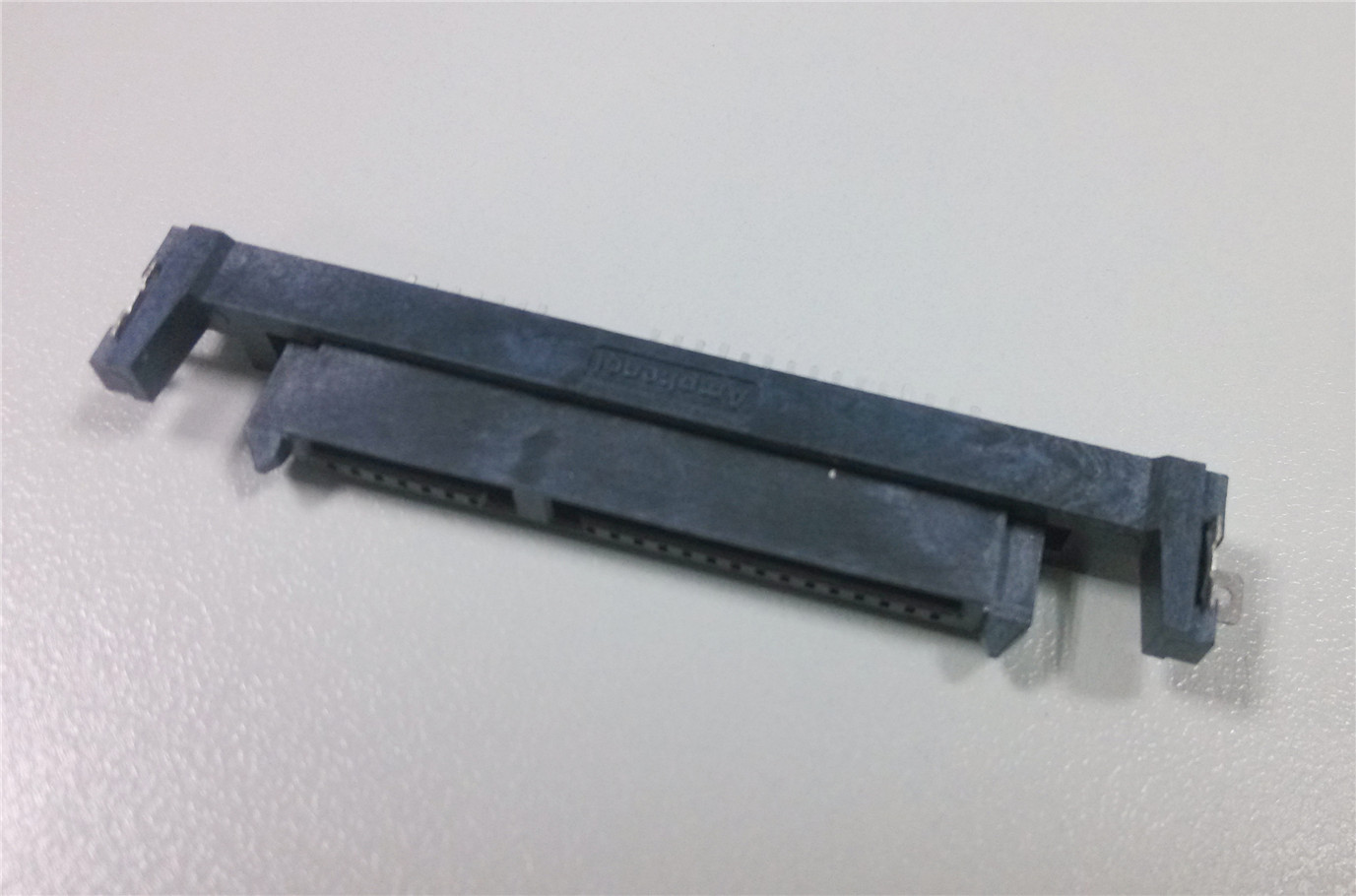

Floating_sata

Applications

   1. SSD

2. Desktop

3. Servers

   4. Vehicle-mounted

Features and Benefits

1.Transmission rate: 6 Gbps.

2. Meet SATA 3.2 specification.

3. Floating up and down

Mechanical Performance

Mating Force and Un-mating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 45 N maximum.

Un-mating Force: 10 N minimum.

Electrical Performance

1.Contact Resistance 30mohm max. initial, 15mohm maximum after stress test.

2.Dielectric Withstanding Voltage 500 VAC for 1 minute no breakdown.

3.Insulation Resistance 1000 Mega ohms minimum.

Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Common Mode Impedance: 25 to 40 ohms

3. Insertion loss: -6dB maximum up to 4.5 GHz,

4. Maximum Crosstalk: -26 dB up to 4.5 GHz

Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing

       Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
