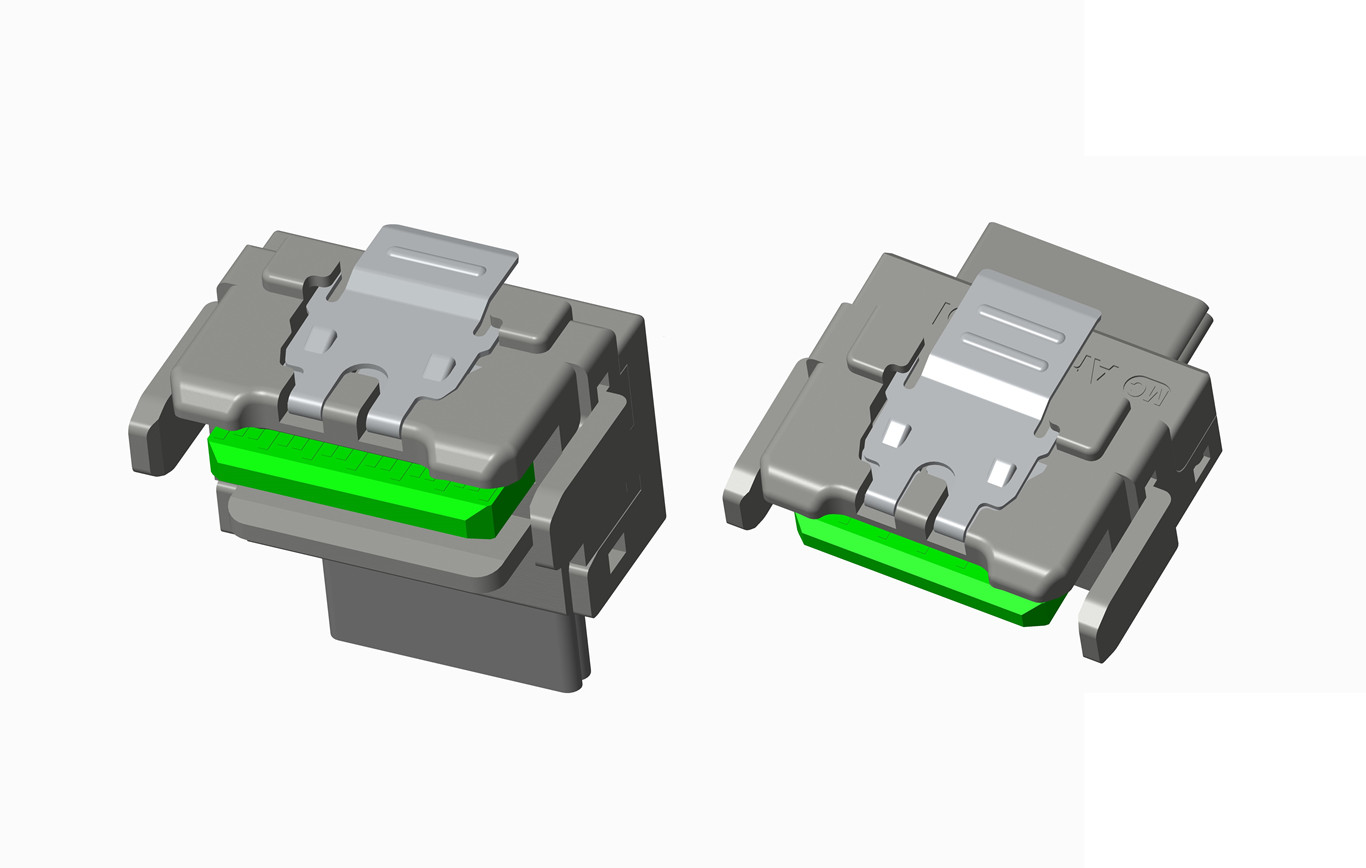

MCIO 4X Straight to Right Angle

Product Description: MCIO 4X 38pos Straight to Right Angle Cable Assembly
Series: MCIO
Cable Length: 1.0 meters
Signal Wire Size: 30AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

MCIO 4X Straight to Right Angle

Product Description: MCIO 4X 38pos Straight to Right Angle Cable Assembly
Series: MCIO
Cable Length: 1.0 meters
Signal Wire Size: 30AWG
Lock to mating part: With latch
Plating: connector Au 30u" min.
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Applications

1.     Data center & Networking Equipment

2.     Servers/Storage Devices

3.     High Performance Computing (HPC)

4.     Switches/Routers

5.     Wireless Base Stations and Radios



Features and Benefits

1.     Pitch 0.6mm connector design

2.     1.57mm PCB card thickness compatible with PCIe riser card

3.     Straight, right angle, side exit and customization cable plug are optional

4.     4 channels (4X) connector can be expanded to 6 channels(6X) when sidebands are used with high speed signal pairs

5.     Supports 85 ohm impedance applications

6.     Supports signaling rates up to PCIe4 16GT/s, 56 GT/s NRZ and 112 GT/s PAM-4 in future, upgradable to PCIe5 32GT/s

7.     30-34AWG cable



Mechanical Performance

1.      Mating Force: 55.5N maximum

2.      Unmating Force: 49N maximum

3.      Rated durability cycles: 250 cycles minimum



Electrical Performance

1.     Voltage: 30VAC per contact

2.     Current: 0.5A per contact

3.     Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4.     Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5.     Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1.     Mated Connector Impedance: 85+/-10% ohm @25ps RT

2.     SCD21: meet SAS4.0 and PCIe4.0

3.     FEXT: meet SAS4.0 and PCIe4.0

4.     NEXT: meet SAS4.0 and PCIe4.0

5.     Insertion loss: meet SAS4.0 and PCIe4.0



Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed



Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
