Applications

1.      360 Camera system

2.      Display connection system

3.      Mobile High-Definition Link(MHD)

4.      Controller Area Network(CAN)

5.      Rear seat entertainment system

6.      USB/LVDS interface connection

7.      Camera system

Features and Benefits

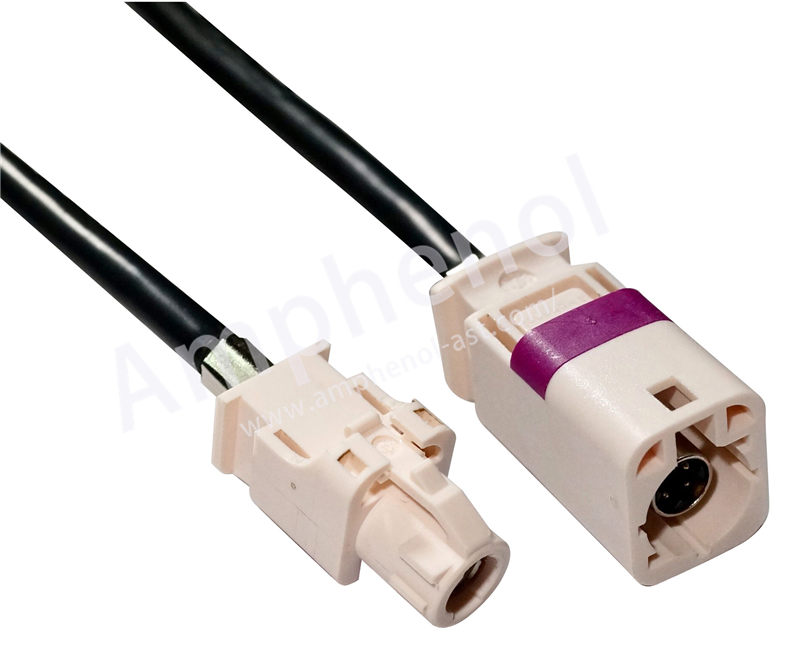

1.      4pin right angle and straight connector for different application

2.      7 different coding and color for different application or can be defined according to customer requirements

3.      Support high speed data transmission

4.      Excellent EMC shielding

5.      Operation Temp. -40 ˚C to +105 ˚C

Mechanical Performance

1.     Mating Force: 30N maximum

2.     Unmating Force: 110N maximum

3.     Durability: 25 cycles min.

Electrical Performance

1.     Contact resistance: 40mohm maximum change after stress test

2.     Dielectric Withstanding Voltage: 500 VDC minimum

3.     Insulation Resistance: 100 MΩ minimum

Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

Packing

        Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
