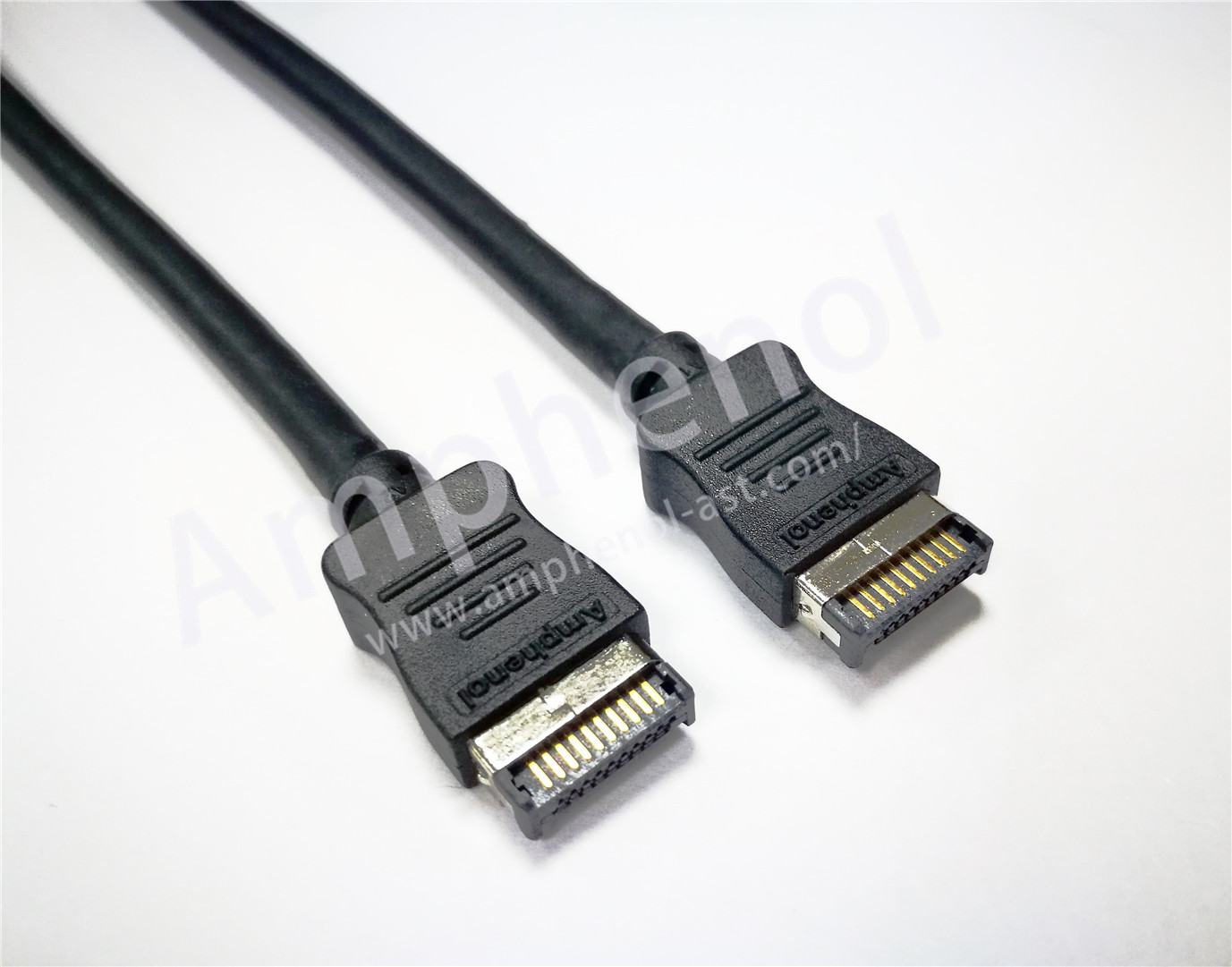

Intel Internal USB3.1 20P to 20P
Part Number: NUS20-0003
Product Description: Internal USB3.1 20pin to 20pin Cable Assembly
Series: USB3.0
Cable Length: 0.25meters
Signal and Power Wire Size: 32AWG and 26AWG
Lock to mating part: Yes
Plating: Au on terminals
Color: black insulation of connector, black overmold and cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Intel Internal USB3.1 20P to 20P

Part Number: NUS20-0003
Product Description: Internal USB3.1 20pin to 20pin Cable Assembly
Series: USB3.0
Cable Length: 0.25meters
Signal and Power Wire Size: 32AWG and 26AWG
Lock to mating part: Yes
Plating: Au on terminals
Color: black insulation of connector, black overmold and cable jacket
Environmental Compliance: RoHS
Flammability: cable VW-1, thermoplastic resin UL94V-0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

Applications

  1. Desktop
  2. Workstation
  3. Server



Features and Benefits

  1. Compact connector: 0.8mm pitch, pin number 20pins
  2. Impedance: 85 ohm
  3. Support 1.67A current per VBUS and total 5A through 3pins,
  4. Support 1 USB Type-C signal or 2 USB3.0 A signal transmission
  5. Transmission speed up to 10Gbps, and could be scalable to 20Gbps in future
  6. 28AWG~34AWG cable
