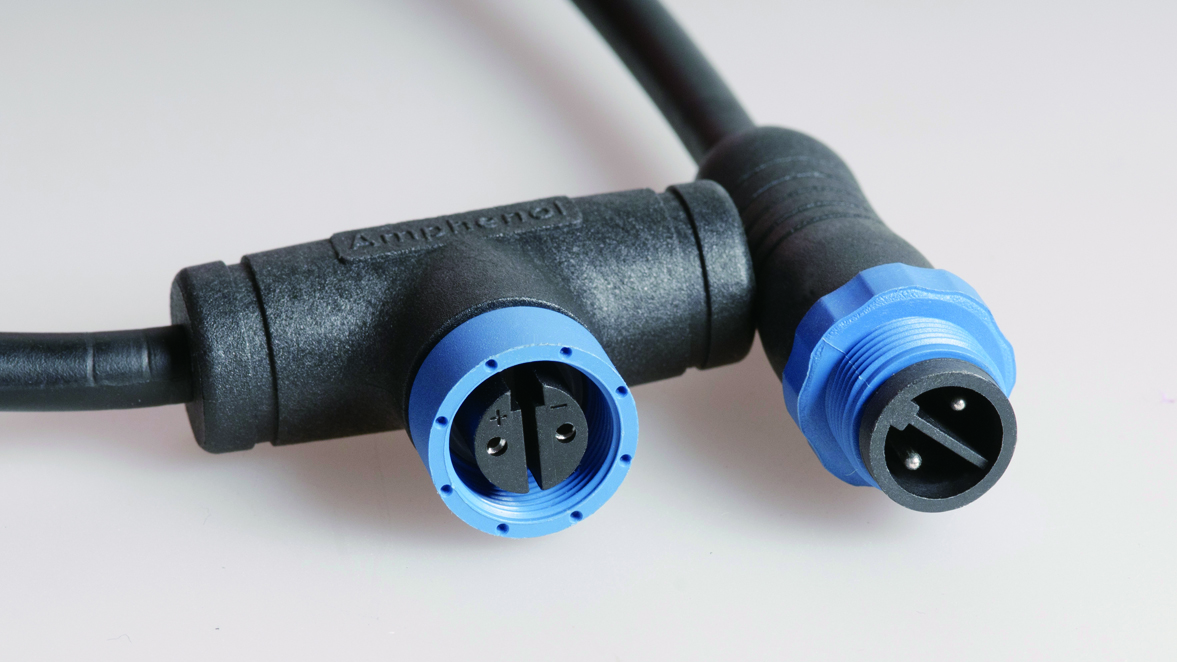

M15 2Pos Male to 6X T Type Female
Part Number: RWHHW-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description：Waterproof Sealiable®-R M15 2Pos Male to 6X T Type Female Cable Assembly
Series: Waterproof Cable Assembly
Cable Length: 800mm (Female connector pitch 100mm, other pitch is optional)
Cable Spec: CCC+VDE Rubber Cable 2*1mm SQ
Lock to Mating Part: By Screw
Plating: Tin(75u'' min) over Ni(120u'' min)
Color: Blue Nut and Black Body
Environmental Compliance: RoHS
Flammability: Thermoplastic UL94V-0

M15 2Pos Male to 6X T Type Female

Part Number: RWHHW-XXXX
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description：Waterproof Sealiable®-R M15 2Pos Male to 6X T Type Female Cable Assembly
Series: Waterproof Cable Assembly
Cable Length: 800mm (Female connector pitch 100mm, other pitch is optional)
Cable Spec: CCC+VDE Rubber Cable 2*1mm SQ
Lock to Mating Part: By Screw
Plating: Tin(75u'' min) over Ni(120u'' min)
Color: Blue Nut and Black Body
Environmental Compliance: RoHS
Flammability: Thermoplastic UL94V-0

Applications

1. LED lighting



Features and Benefits

1.    Meets IP68 protection degree of IEC60529

2.    Pass 5 hours boiled-water test



Mechanical Performance

1. Ambient temperature range: -40 oC ~ +120oC

2. Mated cycle :Min. 500 times

3. Retention force: Min. 10kg



Electrical Performance

1. Current Rating : 10A

2. Voltage Rating: 300V

3 .Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown

4. Insulation Resistance: 1000 MOhm minimum.

5. Contact resistance: Max 5mOhm



Material Property

1. Male terminal: Cu Alloy

2. Female terminal: Cu Alloy

3. Insulator: Thermoplastic

4. Waterproof seal: Silicon Rubber



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
