HDMI A Plug to C Plug

Part Number: 99812-3011-3.0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)

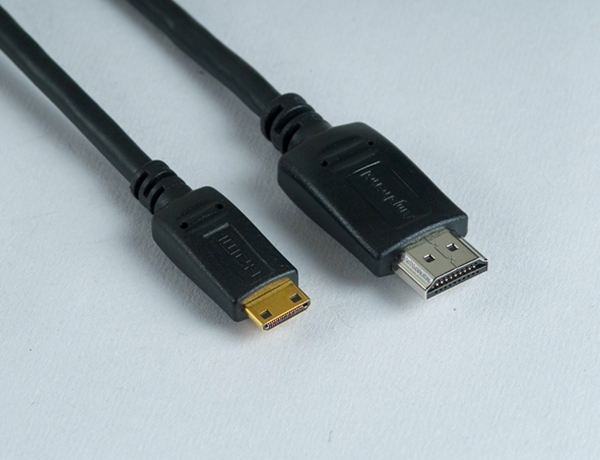

Product Description:HDMI Type A Plug to HDMI Type C Plug
Series: HDMI
Cable Length: 3.0 meters
Wire Size: 30AWG, Tinned Copper,OD:5.0MM
Lock to Mating Part: Without Latch
Plating: Au(15u' min) over Ni(50u' min)
Color: Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-0

HDMI A Plug to C Plug

Part Number: 99812-3011-3.0
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description:HDMI Type A Plug to HDMI Type C Plug
Series: HDMI
Cable Length: 3.0 meters
Wire Size: 30AWG, Tinned Copper,OD:5.0MM
Lock to Mating Part: Without Latch
Plating: Au(15u' min) over Ni(50u' min)
Color: Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-0

Applications

Digital TV

Plasma Display

LCD

High Definition Monitor

Audio/Video Receiver

Set-Top box

Projector

Desk top and notebook

DVD Players/Recorder

DV

DSC

Game box



Features and Benefits

1. Compliance with HDMI specification 1.4 revision.

2. Connects between displays and signal sources

3. Via a single cable, HDMI dramatically simplifies cabling, reduce cost and helps provide consumers with the highest-quality home theater experience.

4. HDMI is a 3.4Gbps (3.4 Gigabits per second) or higher speed channel, allowing uncompressed digital video at up to 1080 (1080 lines progressive scan) video with multi channel audio and control signals to be transmitted from device to device.

5. For existing DVI equipped products, HDMI is closely related to DVI. Various DVI-HDMI and HDMI – DVI converters are already available, allowing the two standards to work seamlessly together.

6. Full shield coverage protects against harmful EMI/RFI interference.



Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Requirement:

Type A connector:

Mating Force: 44.1 N maximum.

Unmating Force: 9.8N(1.0kg) min,39.2N(4.0kg) max

Type C connector:

Mating Force: 44.1 N maximum.

Unmating Force: 7N(0.71kg) min,25N(2.55kg) max

And after5,000 cycles mating,

Unmating Force 3N min,25N max



Electrical Performance

1. Contact Current Rating

0.5Amperes maximum per pin when mated.

2. Voltage Rating

40 Volts AC (RMS.) continuous maximum, on any signal pin with respect to the shield.

3. Contact Resistance

Initial Contact resistance excluding conductor resistance:10 milliohms maximum

4. Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

5. Insulation Resistance

Unmated connectors 100 Mohm minimum.
