SFF-TA-1002 4C+

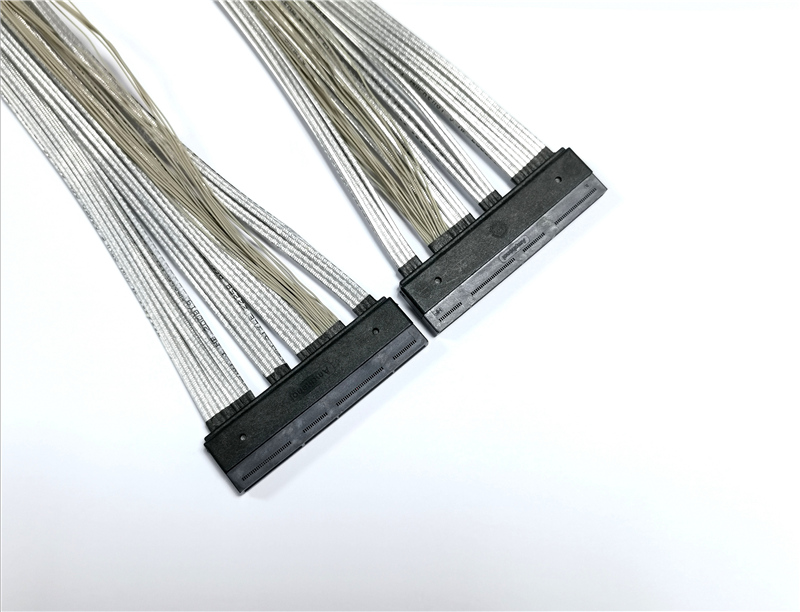

Product Description: 1002 4C+ 168Pin Straight Receptacle Cable Assembly
Series: 1002
Signal Wire Size: 34-30AWG
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

SFF-TA-1002 4C+

Product Description: 1002 4C+ 168Pin Straight Receptacle Cable Assembly
Series: 1002
Signal Wire Size: 34-30AWG
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Applications

1. IT Datacom Servers

2. Storage Devices

3. High Performance Computing (HPC)

4. Base station(AAU)

5. OCP NIC3.0

6. EDSFF


Features and Benefits
1. Support cable to board and board to board application: 1.57mm PCB card thickness compatible with PCIe riser card
2. Multiple channels are optional: 1C(56pos.), 2C(84pos.), 4C (140pos.) and 4C+
3. Small size design: pitch 0.6mm connector
4. Support power and high speed signal transmission together
5. Supports 85 ohm impedance applications
6. 30-34AWG are available for both discrete and ribbon cable
7. Combined Power solution, high speed and sideband

Mechanical Performance
1. Mating force: 31N maximum
2. Unmating force: 6N minimum

3. Rated durability cycles: 25 cycles minimum


Electrical Performance

1. Voltage: 30VAC per contact
2. Current: 0.5A per signal contact, 1.1A per power contact
3. Contact resistance: 30mohm max. initial, 15mohm maximum change after stress test
4. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5. Insulation Resistance: 10 MΩ minimum between adjacent pins


Signal Integrity

1. PCIe Gen5
2. PCIe Gen6(can be upgrade to PCIe Gen6)
3. 56G PAM4
4. 112G PAM4(can be upgrade to 112G PAM4)

Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes

4. Low-Halogen Status: Not Reviewed


Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
