Swift 20X Right Angle Plug

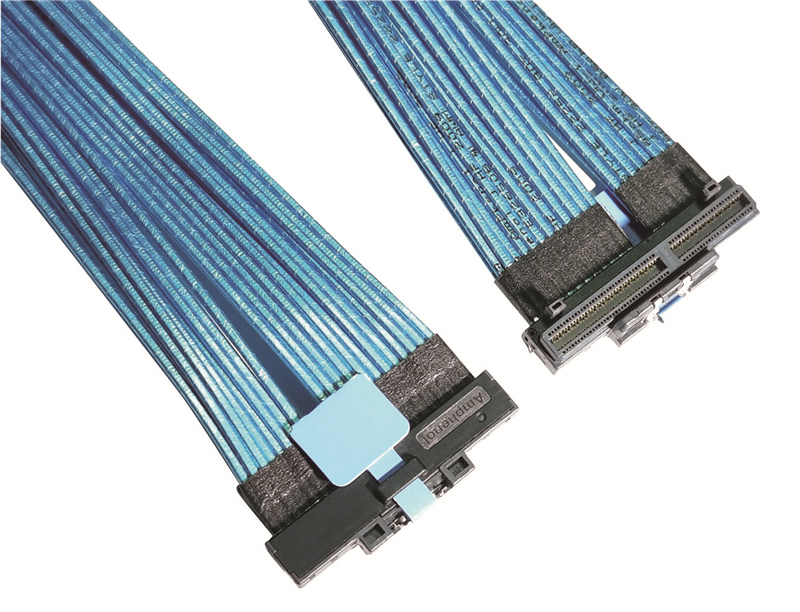

Product Description: Extremeport-Swift 20x Right Angle to Right Angle Cable Assembly
Series: Extremeport-Swift
Signal Wire Size: 30-34AWG
Plating: connector Au 30u" or others
Color: black connector or can be customization
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Swift 20X Right Angle Plug

Product Description: Extremeport-Swift 20x Right Angle to Right Angle Cable Assembly
Series: Extremeport-Swift
Signal Wire Size: 30-34AWG
Plating: connector Au 30u" or others
Color: black connector or can be customization
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Applications

1.      Servers and storage devices

2.      High performance computing

3.      Data center and networking equipment

4.      Wireless base stations and radios.



Features and Benefits

1.      Low height and small pitch design: average pitch 0.6mm

2.      Multiple channels: 6x, 12x, 20x, 24x and other position connectors to tool on request

4.      Supports 85 ohm impedance applications

5.      30-34AWG are available for both discrete and ribbon cable

6.      RoHS compliant. Halogen free is available on request



Mechanical Performance

1.      Mating Force: 20N maximum

2.      Unmating Force: 10N minimum

3.      Rated durability cycles: 250 cycles minimum



Electrical Performance

1.      Voltage: 30VAC per contact

2.      Current: 0.5A per contact

3.      Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4.      Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5.      Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1.      PCIe Gen5 and PCIe Gen6

2.      112G PAM4



Product Environmental Compliance

1.      RoHS2.0: Compliant

2.      China RoHS: Yes

3.      REACH SVHC: Yes

4.      Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
