SlimSAS Low Profile 4x SRT & RA plug

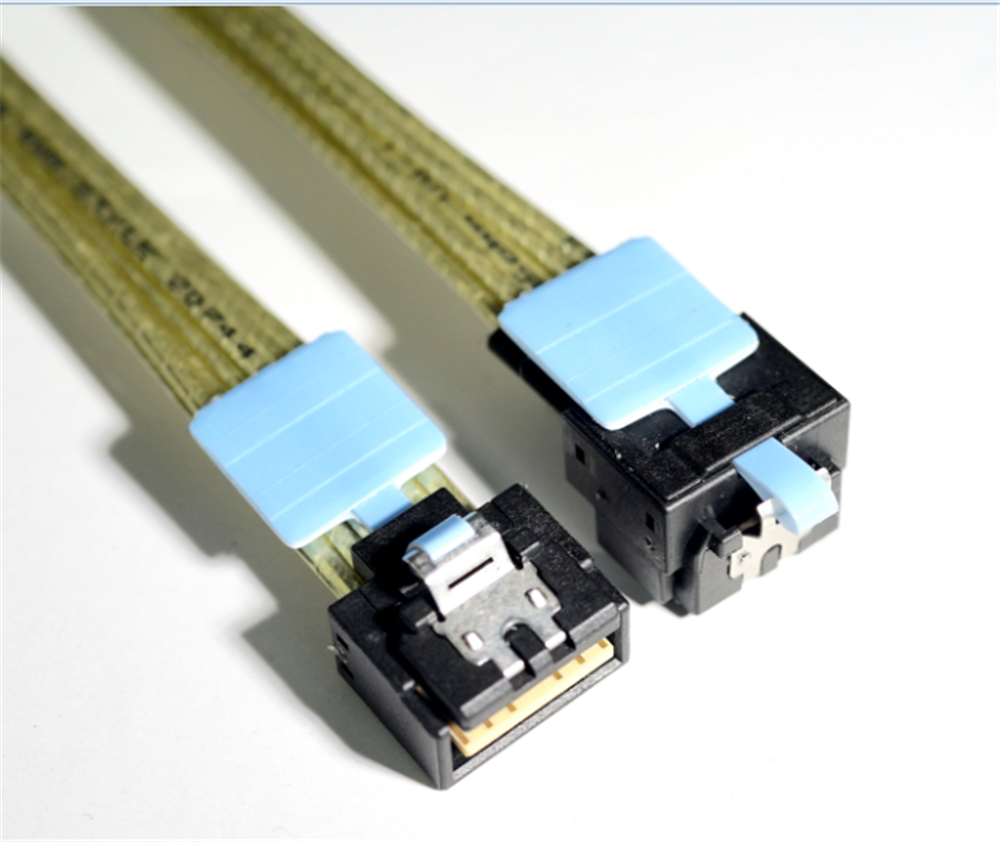

Product Description: Ultraport LP SlimSAS 4X RA plug Cable Assembly with pull tab
Series: SlimSAS LP
Signal Wire Size: 30-34AWG
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

SlimSAS Low Profile 4x SRT & RA plug

Product Description: Ultraport LP SlimSAS 4X RA plug Cable Assembly with pull tab
Series: SlimSAS LP
Signal Wire Size: 30-34AWG
Plating: connector Au 30u" or others
Color: black connector
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Application

1. Server

2. Work station

3.Storage system

4. Switch

5. Router



Features and Benefits

1. Smaller size, 0.6mm pitch
2.  PCB thickness is 1.0mm

4.  Impedance 85 ohm

5. 34-30AWG cables are optional

6. Footprint compatible with SlimSAS



Mechanical Performance

1. Mating force: 55.5N maximum

2. Unmating force: 49N maximum

3. Rated durability cycles: 250 cycles minimum



Electrical Performance

1. Voltage: 30VAC per contact

2. Current: 0.5A per contact

3. Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test

4. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

5. Insulation Resistance: 10 MΩ minimum between adjacent pins



Signal Integrity

1. PCIe Gen4 and PCIe Gen5

2. UPI1.0

3. OPEN CAPI


Product Environmental Compliance

1. RoHS2.0: Compliant
2. China RoHS: Yes

3. REACH SVHC: Yes

4. Low-Halogen Status: Not Reviewed



Packing

Per Amphenol‘s Site Operating Procedure #SOP-708 REV
