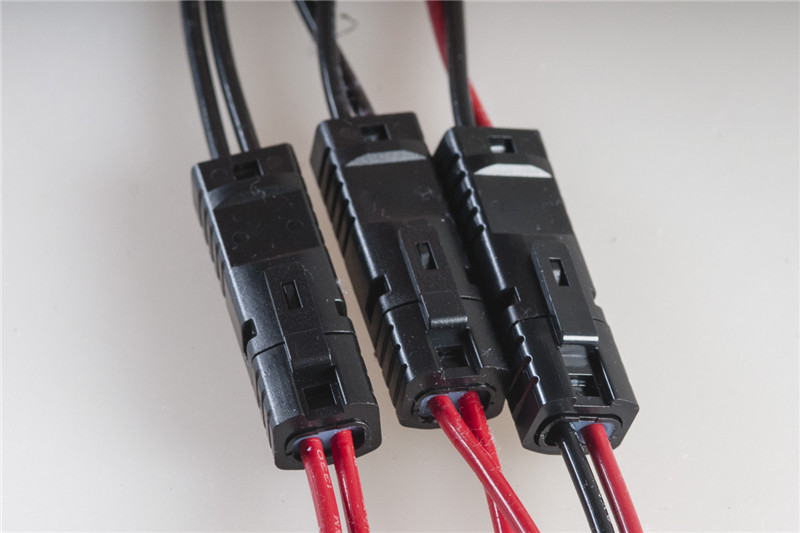

Sealiable®M 2.5mm Pitch
Product Description：Waterproof Sealiable® Miniture 2Pin Pitch 2.5mm Male to Female Cable Assembly
Series：Waterproof Cable Assembly
Cable Length: Customization
Wire Size：20~22AWG, Tinned Copper,OD: 1.65 MM
Lock to Mating Part：With Latch
Plating：Tin(75u” min) over Ni(50u” min)
Color: Black
Environmental Compliance：RoHS
Flammability：Thermoplastic UL94V-0, wire VW-1

Sealiable®M 2.5mm Pitch

Product Description：Waterproof Sealiable® Miniture 2Pin Pitch 2.5mm Male to Female Cable Assembly
Series：Waterproof Cable Assembly
Cable Length: Customization
Wire Size：20~22AWG, Tinned Copper,OD: 1.65 MM
Lock to Mating Part：With Latch
Plating：Tin(75u” min) over Ni(50u” min)
Color: Black
Environmental Compliance：RoHS
Flammability：Thermoplastic UL94V-0, wire VW-1

Applications

1. LED lighting

2. Underwater cameras

3. Automotive



Features and Benefits

1. Small size connector saves device space

2. Directly mating for easy assembly

3. Latch structure ensure reliable connection

4. Endure low and high temperature

5. Protection grade reaches IP67

6. Pitch2.0mm 2pos connector, above 2pos and different pitch connector can be customized


Mechanical Performance

1. Ambient temperature range: -40 oC ~ +105oC

2. Mated cycle :Min1000 times

3. Terminal retention force: Min10KG



Electrical Performance

1. Current Rating: 5A

2. Voltage Rating: 125V

3 . Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown

4. Insulation Resistance: 5 Mohm minimum.

5. Contact resistance:Max 5mOhm



Material Property

1. Male terminal: Cu Alloy

2. Female terminal: Cu Alloy

3. Insulator: Thermoplastic

4. Waterproof seal: Slicon



Product Environmental Compliance

RoHS2.0: Compliant

ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed


Packing

      Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
