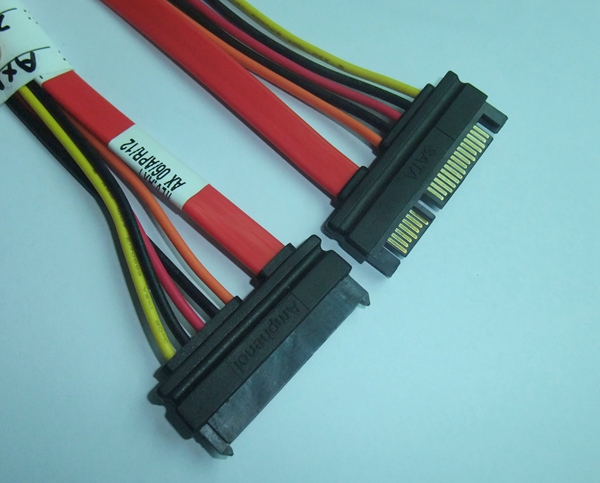

Applications Data/Communications 1.Independent Disks 2. CD driver 3.Workstations 4.Servers 5.Storage rack Features and Benefits 1. Transmission rate 6 GbPS. 2. Meet SAS 3.0 specification. Mechanical Performance 1. Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute. Mating Force: 50 N maximum Unmating Force: 20 N minimum 2. Durability: Condition: EIA 364-09. Mated and Unmated connector for 25cycles at a rate of 200 cycles per hour. There shall be no physical damage and shall meet requirements of subsequent test. Electrical Performance 1. Contact Resistance Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV maximum. Open circuit at 100mA maximum. 30 mohm maximum, initial per contact mated pair. 2. Dielectric Withstanding Voltage Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies. The dielectric shall withstand 500 VAC for 1 minute at sea level. No flashover, no spark over, no excess leakage and no breakdown. 3. Insulation Resistance Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies. The IR shall be 1000 Mohm minimum. Signal Integrity: 1. Mated Connector Impedance: 100 ohm±15% 2. Cable Absolute Impedance: 100 ohm±10% 3. Cable Pair Matching: ±5 ohm 4. Common Mode Impedance: 25~ 40 ohms 5. Insertion loss: -6dB maximum <
|
