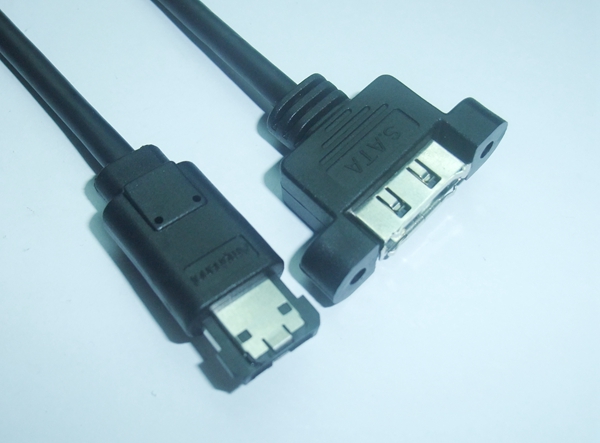

ESATA 7P Plug to 7P Receptacle

Part Number: RST07-0766
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: ESATA Male to Female
Series: SATA
Cable Length: 0.3 meters
Wire Size: 26AWG, Tinned Copper, OD 5.0MM
Plating: Au 15u” min over Ni 50u” min
Color: Cable Black, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-1

ESATA 7P Plug to 7P Receptacle

Part Number: RST07-0766
(Note: The part number is only for reference. If you have requirement, please contact Amphenol for further confirming PN and drawing)
Product Description: ESATA Male to Female
Series: SATA
Cable Length: 0.3 meters
Wire Size: 26AWG, Tinned Copper, OD 5.0MM
Plating: Au 15u” min over Ni 50u” min
Color: Cable Black, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable VW-1, Overmold 94V-1

Applications

    Data/Communications

1. Independent Disks

2. Workstations

3. Servers

4. Storage rack



Features and Benefits

1. Transmission rate 6 Gbps.

2. Meet SATA 3.0 specification.



Mechanical Performance

1. Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of 12.5mm/minute.

Mating Force: 40 N max.

Unmating force: 10N Min.

2. Durability:

Condition: EIA 364-09. Mated and Unmated connector for 2500cycles at a rate of 500 cycles per hour.

No physical damage and shall meet requirements of subsequent test.



Electrical Performance

1. Contact Resistance

Condition: EIA 364-23. Subject mated contacts assembled in housing to 20mV max Open circuit at 100mA maximum.

30 mohm max, initial per contact mated pair. 15 mohm maxi, after stress per contact mated pair.

2. Dielectric Withstanding Voltage

Condition: EIA 364-20. Method B. Test between adjacent of mated and unmated connector assemblies. The dielectric shall withstand 500 VAC for 1 minute at sea level.

No flashover, no spark over, no excess leakage and no breakdown.

3. Insulation Resistance

Condition: EIA 364-21. Method C. Measure the insulation resistance between the adjacent contacts of mated and unmated connector assemblies.

The IR shall be 1000 Mohm minimum.



Signal Integrity:

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25~ 40 ohms

5. Insertion loss: -6dB max

6. Crosstalk: -26 dB

7. Rise Time:150 ps

8. Propagation Delay Skew: 20 ps max



Product Environmental Compliance

RoHS2.0: RoHS 2.0 Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed
