Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks )
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1. Transmission rate 6 Gbps.
2. Meet SAS2.1 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

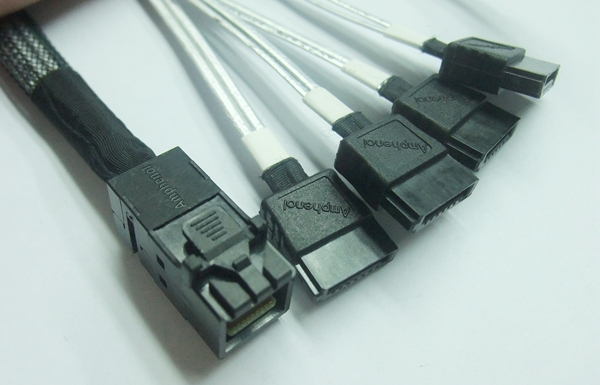

Mating Force: 100 N maximum for HD Mini SAS connector.
Unmating Force: 50 N maximum for HD Mini SAS connector..
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Pair Matching: ±5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dB up to 6Ghz;
Product Environmental Compliance
RoHS2.0: RoHS 2.0 Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Packing
Per Amphenol‘s Site Operating Procedure #SOP-708 REV 2
|
